Consuming the OpenLM API v4 in your Dashboard

The following document describes a number of methods and code samples that show how to consume the OpenLM v4 API in an application.

You can also check out this archive which contains a sample C# project along with a short video that explains how to configure and compile the project.

For additional methods and classes that were added to the API since version 4, please consult the following documents:



Table of Contents

On-Premise mode API URL

SAAS mode API URL

Get Top X Denied Features in Last Y Days

Get Top X Denied Users in Last Y Days

API Method: GetDenialsChart

Request: DenialChartRequest

Response: DenialsChartResponse

C# Samples (for On-Premise and SaaS modes)

Get Top X Most Used Features in Last Y Days

Get Top X Users of Most Used Features in Last Y Days

API Method: GetLicensesActivityByGroup

Request: LicensesActivityRequest

Response: LicensesActivityByGroupResponse

LicenseActivityByGroupResponse

C# Samples (for On-Premise and SaaS modes)

Get Top 10 Current Longest Idle Sessions

Get Top 10 Current Longest Usage Sessions

API Method: GetCurrentlyConsumedLicenses

Request: CurrentlyConsumedLicensesRequest

Response: CurrentlyConsumedLicensesResponse

CurrentlyConsumedLicense

C# Samples (for On-Premise and SaaS modes)

Get License servers status

API Method: GetLicenseServers

Request: GetLicenseServersRequest

Response: LicenseServersResponse

LicenseServerStatistics

LicenseServerHostDetails

C# Samples (for On-Premise and SaaS modes)

Common types

RequestBaseInfo

SessionRefresh

Property

Type

Description

PagingData

Property

Type

Description

UserLocalSettings

Property

Type

Description

TimeFormat

TimezoneStandardName

DecimalSeparator

ThousandsSeparator

Thousands separator sign

SlimDateTime



On-Premise mode API URL

http://[openlm_server]:7020/OpenLM.Server.Services/AdminAPI



SAAS mode API URL

http://saas.openlm.com/SaasService/Service.svc/soap



Get Top X Denied Features in Last Y Days

Get Top X Denied Users in Last Y Days

API Method: GetDenialsChart

Request: DenialChartRequest

Property Type Description
SaasToken String An authentication session ID in SaaS mode.
BaseInfo RequestBaseInfo General request information includes: Session, Paging, User local settings, etc.
GetTrueDenialsOnly Boolean Retrieve only true denials
StartTime SlimDateTime Minimal time of denial
EndTime SlimDateTime Maximal time of denial
GroupBy String Field is grouped by: Feature or User

Response: DenialsChartResponse

Property Type Description
Points KeyValuePair<String, Int64>[] Array of grouped points, pair of Values and Count

C# Samples (for On-Premise and SaaS modes)



Test method in sample solution: AdminAPISamples.GetTop10DeniedFeaturesInLast30Days

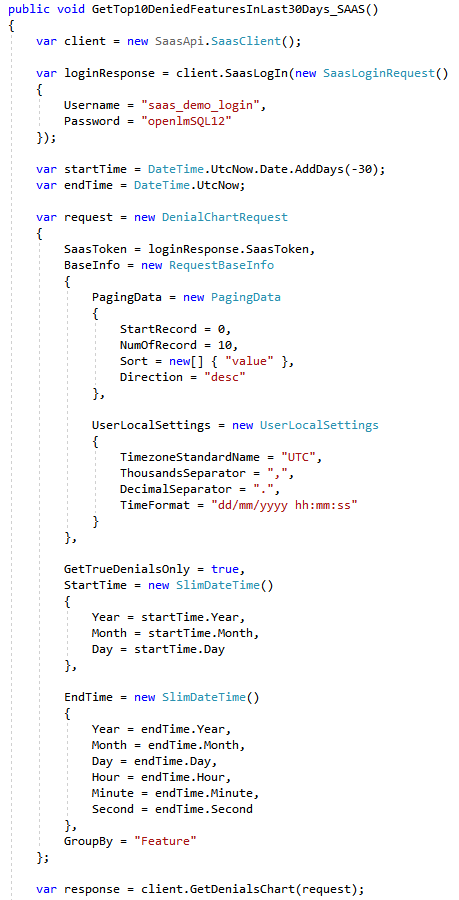

Test method in sample solution: AdminAPISamplesSAAS.GetTop10DeniedFeaturesInLast30Days_SAAS



Test method in sample solution: AdminAPISamples.GetTop5DeniedUsersInLast30Days



Test method in sample solution: AdminAPISamplesSAAS.GetTop5DeniedUsersInLast30Days_SAAS

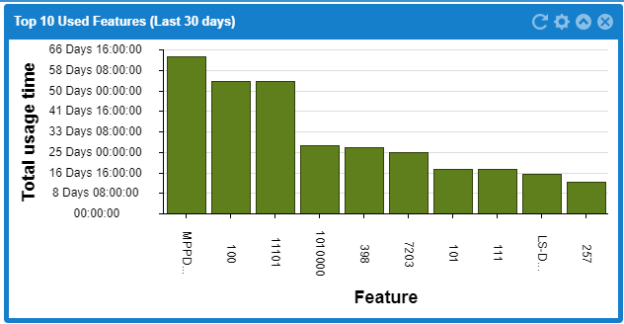

Get Top X Most Used Features in Last Y Days

Get Top X Users of Most Used Features in Last Y Days

API Method: GetLicensesActivityByGroup

Request: LicensesActivityRequest

Property Type Description
SaasToken String An authentication session ID in SaaS mode.
BaseInfo RequestBaseInfo General request information includes: Session, Paging, User local settings, etc.
StartTime SlimDateTime Minimal time of usage activity
EndTime SlimDateTime Maximal time of usage activity
GroupBy String Field is grouped by: Feature or User

Response: LicensesActivityByGroupResponse

Property Type Description
LicensesActivities LicenseActivityByGroupResponse[] Array of license usage by group value (paging size)
TotalNumOfLicensesActivities Long Total number of license usage by group value

LicenseActivityByGroupResponse

Property Type Description
FilterUsageTime Double License Usage time within filter time (in hours)
GroupByField String Group field value
TokenFilterUsageTime Double Token Usage time within filter time (in hours)
TokenUsageTime Double Token Usage time (in hours)
UsageTime Double License Usage time (in hours)

C# Samples (for On-Premise and SaaS modes)

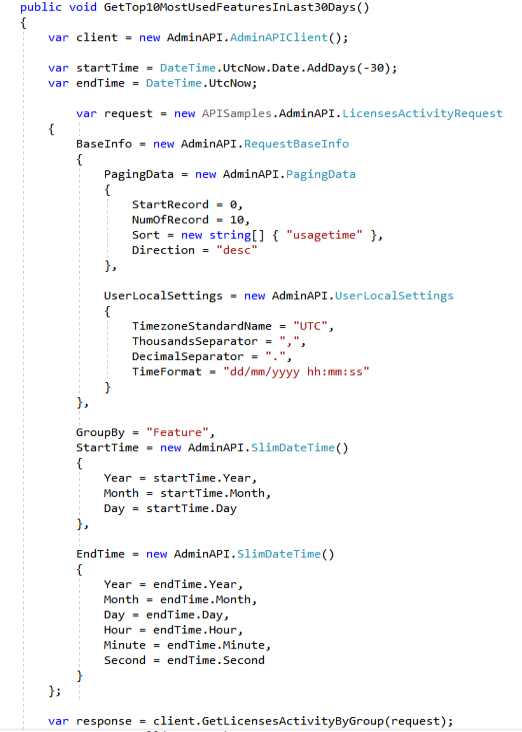

Test method in sample solution: AdminAPISamples.GetTop10MostUsedFeaturesInLast30Days

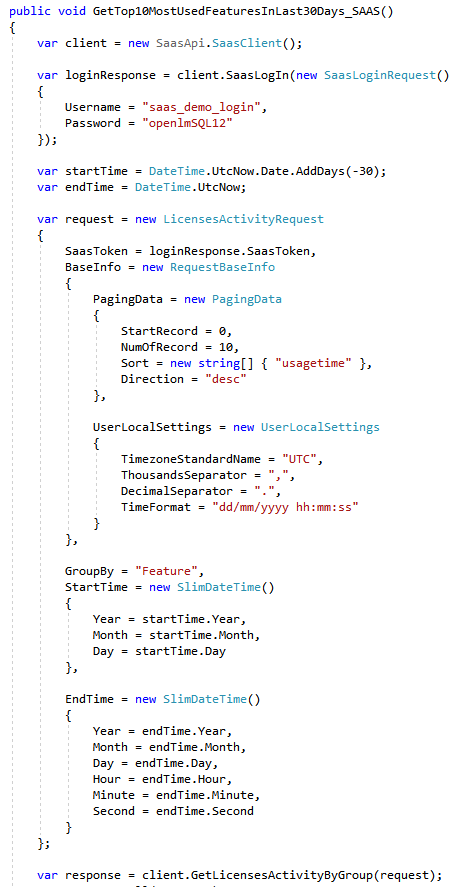

Test method in sample solution: AdminAPISamplesSAAS.GetTop10MostUsedFeaturesInLast30Days_SAAS


Test method in sample solution: AdminAPISamples.GetTop10UsersOfMostUsedFeaturesInLast30Days


Test method in sample solution: AdminAPISamplesSAAS.GetTop10UsersOfMostUsedFeaturesInLast30Days_SAAS

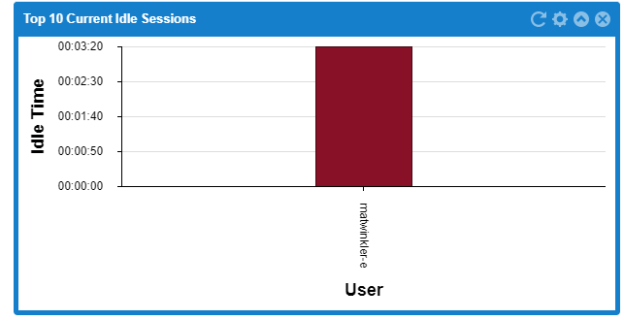

Get Top 10 Current Longest Idle Sessions

Get Top 10 Current Longest Usage Sessions

API Method: GetCurrentlyConsumedLicenses

Request: CurrentlyConsumedLicensesRequest

Property Type Description
SaasToken String An authentication session ID in SaaS mode.
BaseInfo RequestBaseInfo General request information includes: Session, Paging, User local settings, etc.

Response: CurrentlyConsumedLicensesResponse

Property Type Description
Licenses CurrentlyConsumedLicense[] Array of current license sessions (in use or idle) (paging size)
TotalNumberOfLicenses Long Total number of current license sessions

CurrentlyConsumedLicense

Property Type Description
FeatureName String The feature name of consumed license
Version String The version of feature
LicenseType String The license type:

Floating, NodeLocked, NamedUser, SingleUse, NamedUserCasual, HostBased, Unmanaged, UserNameLocked, Token

AdditionalKey String The license additional key
ServerName String The name of LM server from where the license consumed
Vendor String The feature’s vendor
UserName String The user who consumed the license
IdleTime String The total idle time of current usage session (in seconds)
Duration String The total duration time of current usage session (in seconds)
NumOfLics Int32 The number of current license consumed
Quantity Int32 The maximal number of licenses purchased
Borrowed Int32 Is license borrowed: 1 or 0
Email String The email of user who consumed the license
FirstName String The first name of user who consumed the license
LastName String The last name of user who consumed the license
GroupName String The default group of user who consumed the license
Handle Int32 A LM unique identifier for the license session
HostIds String Host identifiers, separated by “,”
HostName String The name of workstation on which the license was consumed
IP String The IP of workstation on which the license was consumed
IsFeatureAccurate Char Whether feature resolution is accurate:

‘1’ : Accurate

‘0’ : Multiple potential licenses exists

LingerDueDate String Borrowing end date
LingerTime Int32 Borrowing start date
PhoneNumber String The phone number of user who consumed the license
ProductName String The product name of consumed license
ProjectName String The default project name of user who consumed the license
RecentIdleTime String The idle time of recent period (in seconds)
StartTime SlimDateTime The start time when license consumed
UserIdleTime String The user workstation idle time (in seconds)
CloseAppEnabled Boolean Whether to enable close application button
RemoveLicenseEnabled Boolean Whether to enable remove license button

C# Samples (for On-Premise and SaaS modes)

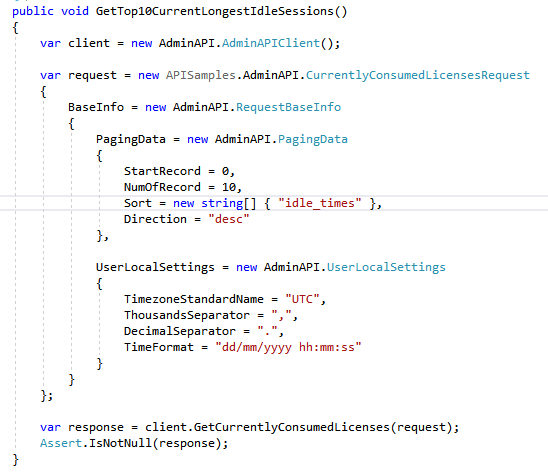

Test method in sample solution: AdminAPISamples.GetTop10CurrentLongestIdleSessions

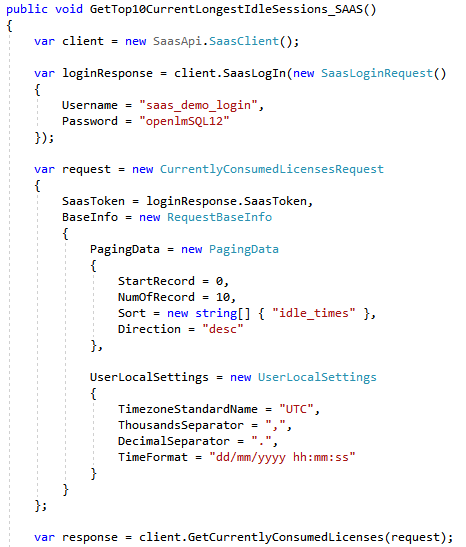

Test method in sample solution: AdminAPISamplesSAAS.GetTop10CurrentLongestIdleSessions_SAAS



Test method in sample solution: AdminAPISamples.GetTop10CurrentLongestUsageSessions

Test method in sample solution:AdminAPISamplesSAAS.GetTop10CurrentLongestUsageSessions_SAAS



Get License servers status

API Method: GetLicenseServers

Request: GetLicenseServersRequest

Property Type Description
SaasToken String An authentication session ID in SaaS mode.
BaseInfo RequestBaseInfo General request information includes: Session, Paging, User local settings, etc.

Response: LicenseServersResponse

Property Type Description
Servers LicenseServerStatistics[] Array of license servers

LicenseServerStatistics

Property Type Description
EnableStatus LicenseServerEnableStatus Disabled = 0,

Enabled = 1,

Deleted = 2

HasLicenseFile Boolean Whether a license file is read
Hosts LicenseServerHostDetails[] The hosts associated with license server
IsCandidate Boolean Whether a license server is a candidate to be configured (if not configured yet and broker sent data from that server)
IsUnlimited Boolean Whether server’s total licenses quantity is unlimited
ServerLM String The LM type:

FLEXlm, MathLM, LUM, RMS, HASP, LMX

RLM, DSLS, BetaLM, OpenLM Generic, EPDM, SPLM, CodeMeter, LSDYNA, SlickEdit, GreenHills, Licman, OLicense, OpenLM App Manager

PermissionToAdministerServer Boolean Whether to enable broker commands button:

Start/Stop, Reread, File fetching

RecentSuccessfulQueryDate SlimDateTime The recent date of successful sample processing
ServerDescription String The description of server
ServerStatus LicenseManagerStatus UNKNOWN = 1,

DOWN = 2,

UP = 3,

PARTIAL = 4, // some hosts have issues in status

NO_VALID_LIC_FILE = 5

ServerStatusDesc String The description of server status
ServerStatusDate SlimDateTime The date of last reported status
TimeZone String The time zone on server
TotalBorrowed Int32 The total number of borrowed licenses
TotalQuantity Nullable<Long> The total quantity of purchased licenses
TotalUsed Int32 The total number of licenses in use
UsagePercent Double The percentage of used licenses (from total quantity)
ConfigurationIsDirty Char Whether server configuration was changed but OpenLM server has not been restarted yet

LicenseServerHostDetails

Property Type Description
BrokerInstallPath String The path of broker installation
BrokerVersion String The version of broker installed
EnableAdministration Boolean Whether to allow running broker commands:

Start/Stop, Reread

EnableFileFetch Boolean Whether to enable File fetching
HostID Int32 The id of host
HostLocalTime String The current local time on host machine
HostName String The hostname
Port Int32 The port on host
HostTimeZone String The time zone on host machine
JavaVersion String The java version installed on host machine
LmUptime String The status of host:

“UP {days} days, {hours} hours, {minutes} minutes”

“BROKER DOWN”

“LM DOWN”

“NO BROKER”

“NOT CONFIGURED”

“BROKER SYNC”

“UNKNOWN”

“TIME DIFF ERROR”

PortStatus String UNKNOWN = 1,

DOWN = 2,

UP = 3,

PARTIAL = 4

PortStatusSendTime Nullable<DateTime> The time post status was sent
VendorStatusMessage String The message of port status

C# Samples (for On-Premise and SaaS modes)

Test method in sample solution: AdminAPISamples.GetLicenseServersStatus



Test method in sample solution: AdminAPISamplesSAAS.GetLicenseServersStatus_SAAS



Common types

RequestBaseInfo

Property Type Description
SessionData SessionRefresh Session Data
PagingData PagingData Paging Data
UserLocalSettings UserLocalSettings User localization settings:

Date time format, Time zone, etc.

IsExport Boolean Whether to get exported to csv results
CustomerId String Customer’s identifier

Relevant to SAAS system only.

SessionRefresh

Property

Type

Description

SessionID String The ID of session
Refresh Boolean Is manual refresh

PagingData

Property

Type

Description

StartRecord Int32 Number of paging start record
NumOfRecord Int32 Max result set size
Sort String[] Columns by which result can be sorted
Search String Data to search
SearchColumns String[]
Columns that will be used for search
Direction String Sorting direction: “ASC” or “DESC”

UserLocalSettings

Property

Type

Description

TimeFormat
String The format of date and time

For example:

dd/mm/yyyy hh:mm:ss

mm/dd/yyyy hh:mm:ss

yyyy-mm-dd hh:mm:ss

TimezoneStandardName
String Time zone standard name, according to System.TimeZoneInfo.Id
DecimalSeparator
String Decimal separator sign
ThousandsSeparator
String
Thousands separator sign

SlimDateTime

Property Type Description
Year Int32
Month Int32
Day Int32
Hour Int32
Minute Int32
Second Int32

in

Related Articles
