Infor SLM

Follow these steps to configure OpenLM to monitor license usage and retrieve license statistics from Infor SLM License Manager.

Requirements

Before you query the license manager, install:

1. OpenLM SLM v2.x on your premises (or an OpenLM Cloud account)
2. OpenLM Broker v24.11 or higher on the same machine as the Infor SLM License Manager

OpenLM Broker configuration

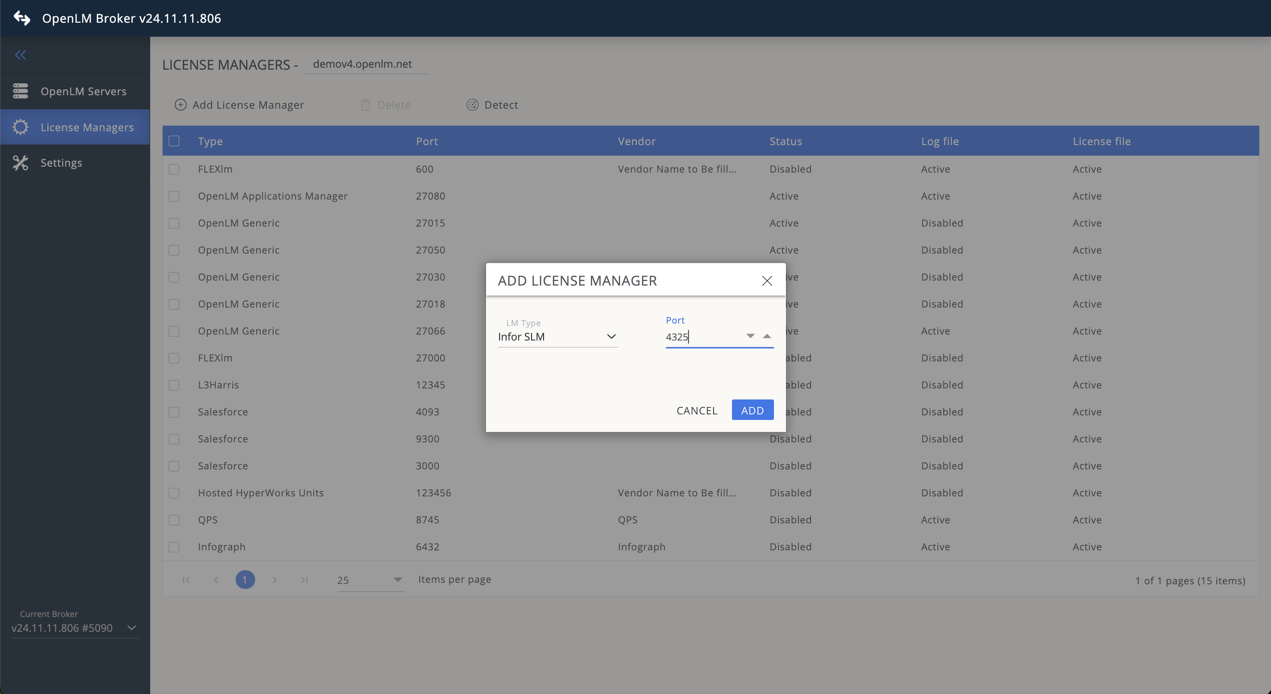

Adding Infor SLM License Manager in OpenLM Broker

注意

OpenLM Broker must be installed and configured to report to OpenLM SLM before proceeding.

1. Open the Broker web UI at http://localhost:5090.
   If the default port is in use, try 5091 or 5092.

2. Go to License Managers → Add License Manager.

3. From the LM Type drop-down list, select Infor SLM.

4. Enter the port number (e.g., 4325) and click Add.

5. Go to the Settings tab.

   • The Broker may auto-detect the license file path.
   • If not, select Set license file path manually and navigate to the license.xml file.

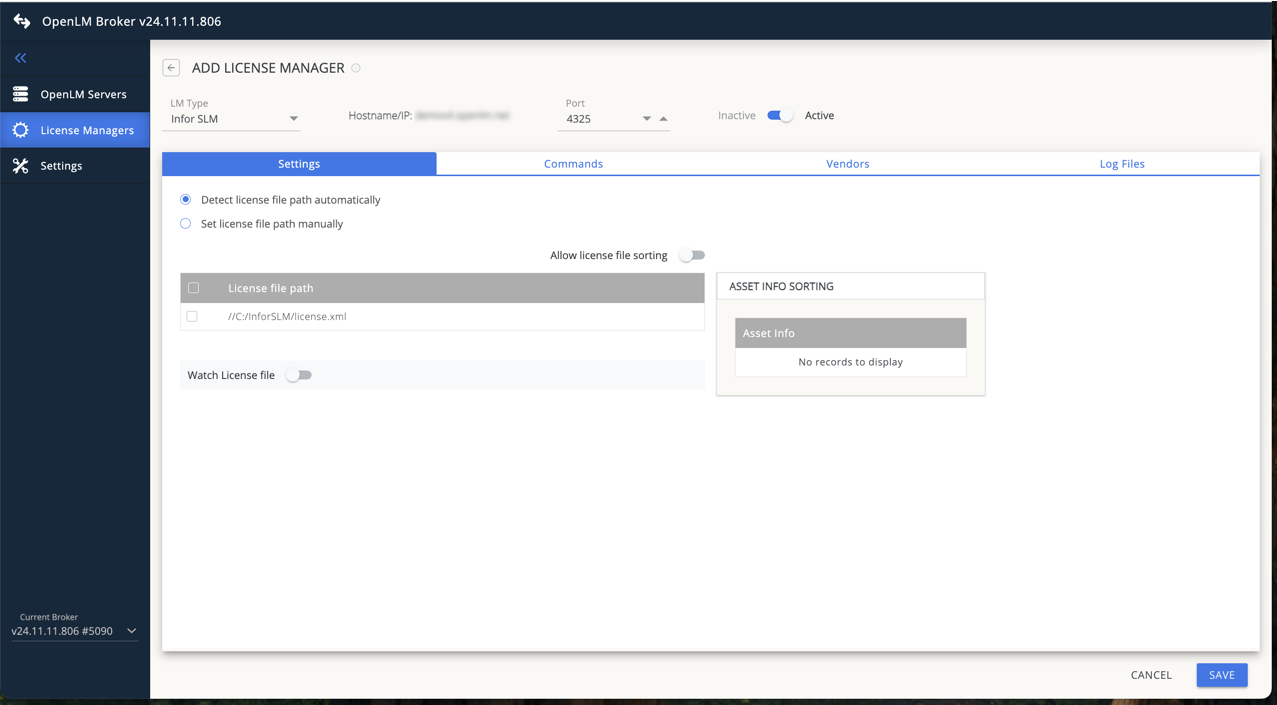

   Setting license file path for Infor SLM in OpenLM Broker

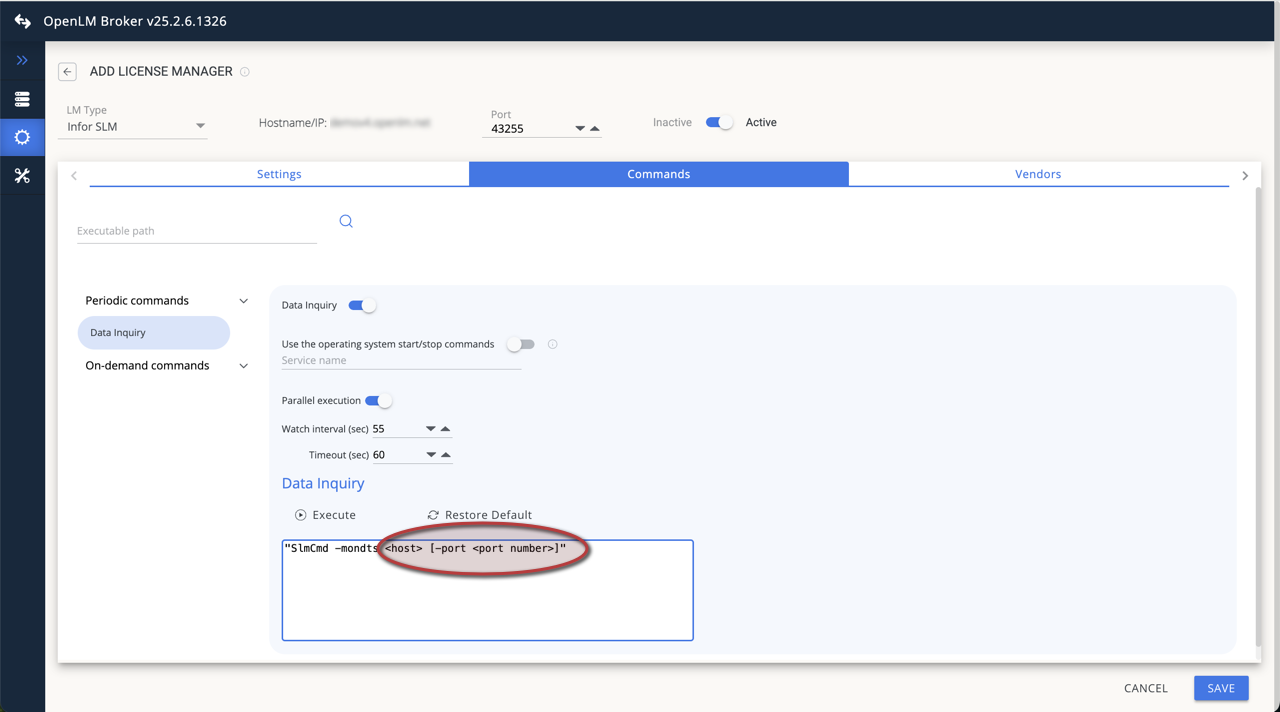

6. Go to the Commands tab. Enter the Infor SLM host and port in the Data Inquiry field.


   Configuring data inquiry for Infor SLM in OpenLM Broker

7. Click Save, then click Execute to test the configuration.

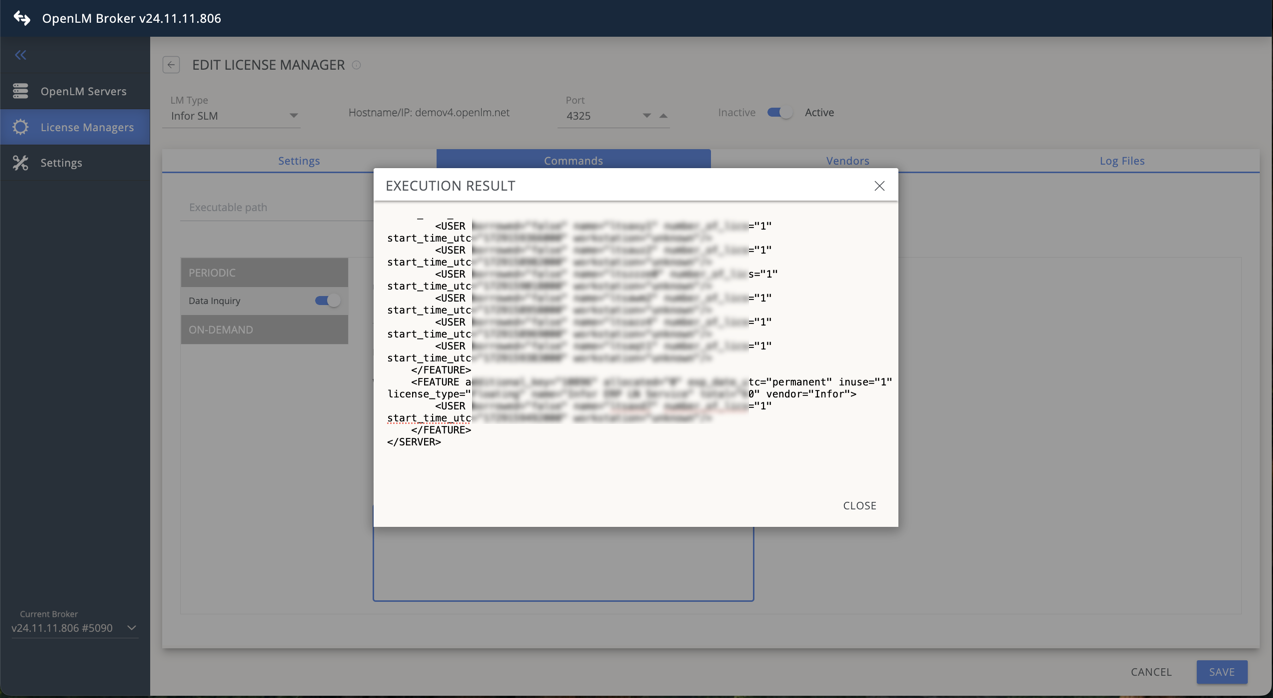

   Successful execution output for Infor SLM license manager

8. Go to the Vendors tab. Click Add Vendor, enter Infor SLM, and click Continue.

9. Click Save.

OpenLM configuration

If the above steps are complete, Broker should be transmitting data to OpenLM SLM.
Approve the configuration in the EasyAdmin UI:

1. Open EasyAdmin.

2. Go to Start → Widgets → License Manager Servers.

3. Click the Servers Pending Approval link.

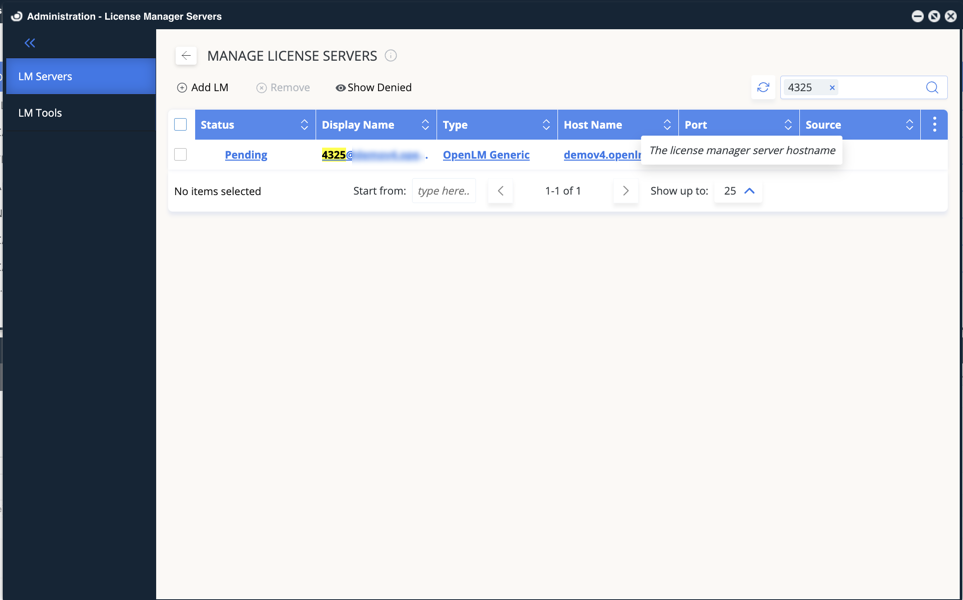

   Pending license managers in EasyAdmin

4. Double-click the pending Infor SLM entry. It will be displayed as OpenLM Generic.


   Pending Infor SLM license manager in EasyAdmin

5. In the Display Name field, enter a preferred name (for example, Infor SLM).

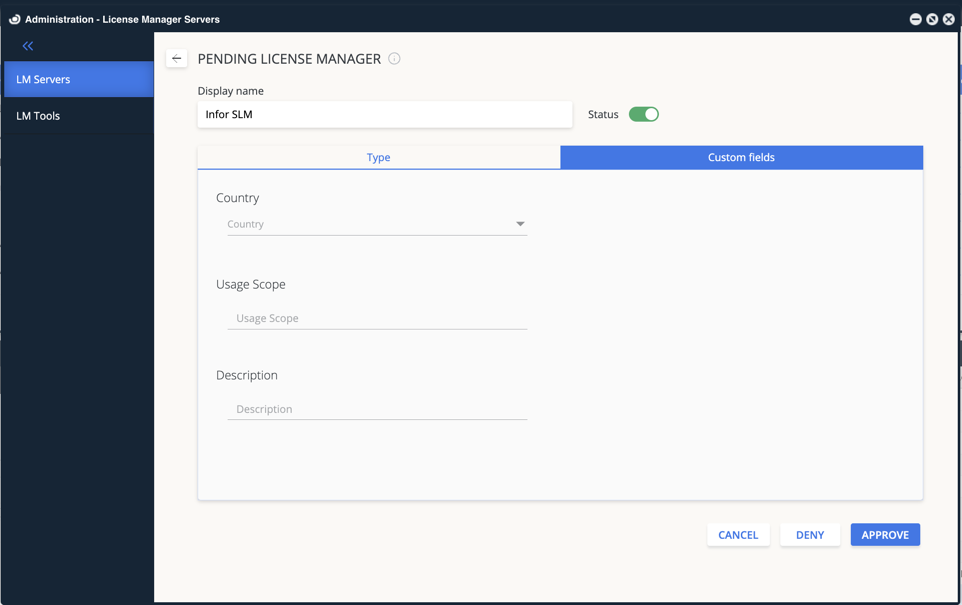

6. (Optional) Go to the Custom Fields tab to add details such as country, usage scope, and description.


   Adding custom fields for Infor SLM license manager

7. Verify the configuration and click Approve.

At this point, Infor SLM is added to OpenLM SLM. It may take up to 3 minutes for the status to update.

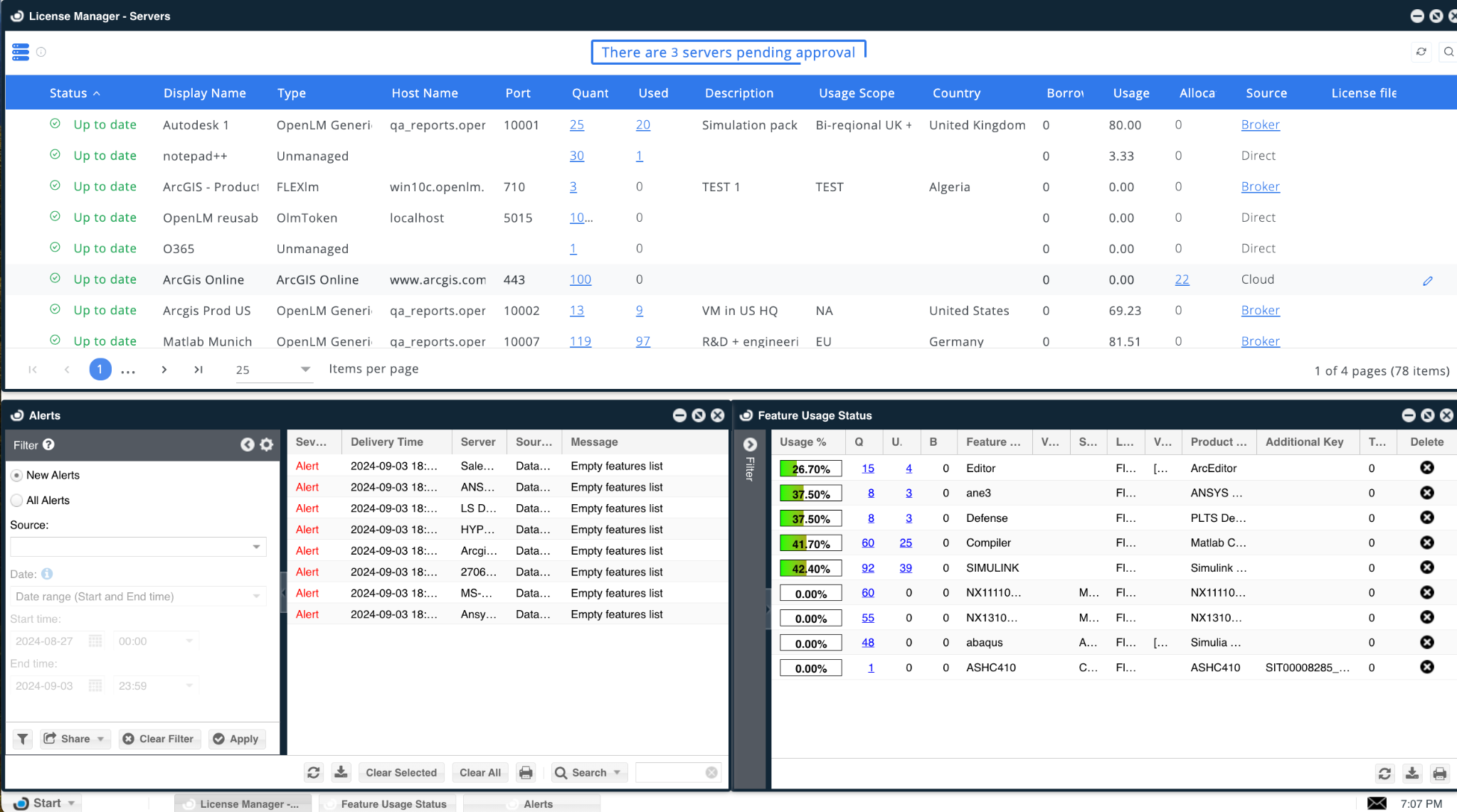

A green circle icon indicates an active connection.

Verify your configuration

1. Open EasyAdmin.
2. Go to Start → Widgets → License Manager Servers.
3. Confirm that the Infor SLM license manager appears in the list with a green circle icon.

注意

It may take up to 3 minutes for the status to update after a new connection.
