How to Configure the Integration Between OKTA SSO and OpenLM

This is a short guide on how to configure the integration between OKTA SSO and OpenLM.

Requirements: #

  • An existing OKTA account
  • OpenLM Server&Identity Service v21 and higher configured with SSL, or an OpenLM Cloud account

Adding OpenLM Application in the Okta Admin Interface

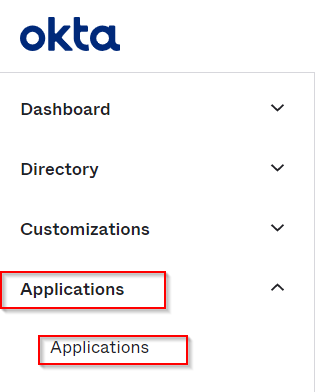

  1. On the left side menu click on Applications:

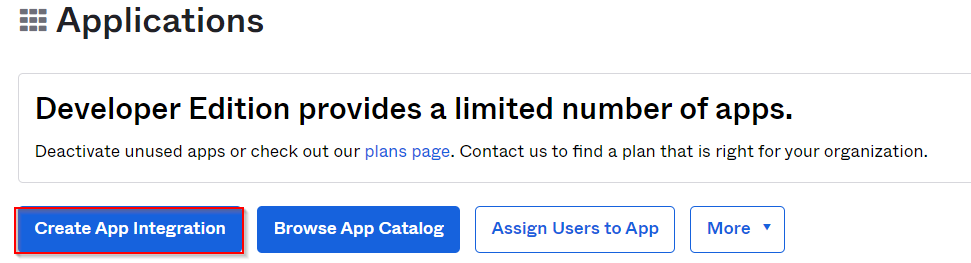

  2. Click on Create App Integration:

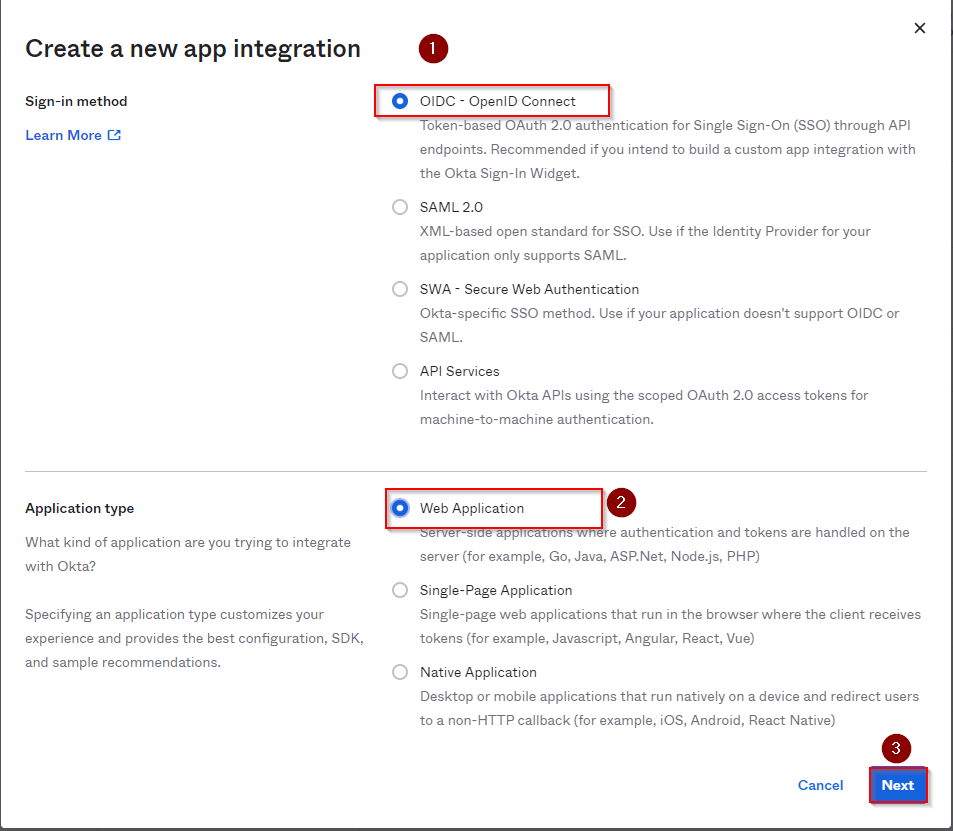

  3. In the newly opened pop-up window select the Sign-in method – OIDC – OpenID Connect and Application Type – Web Application. Click Next.

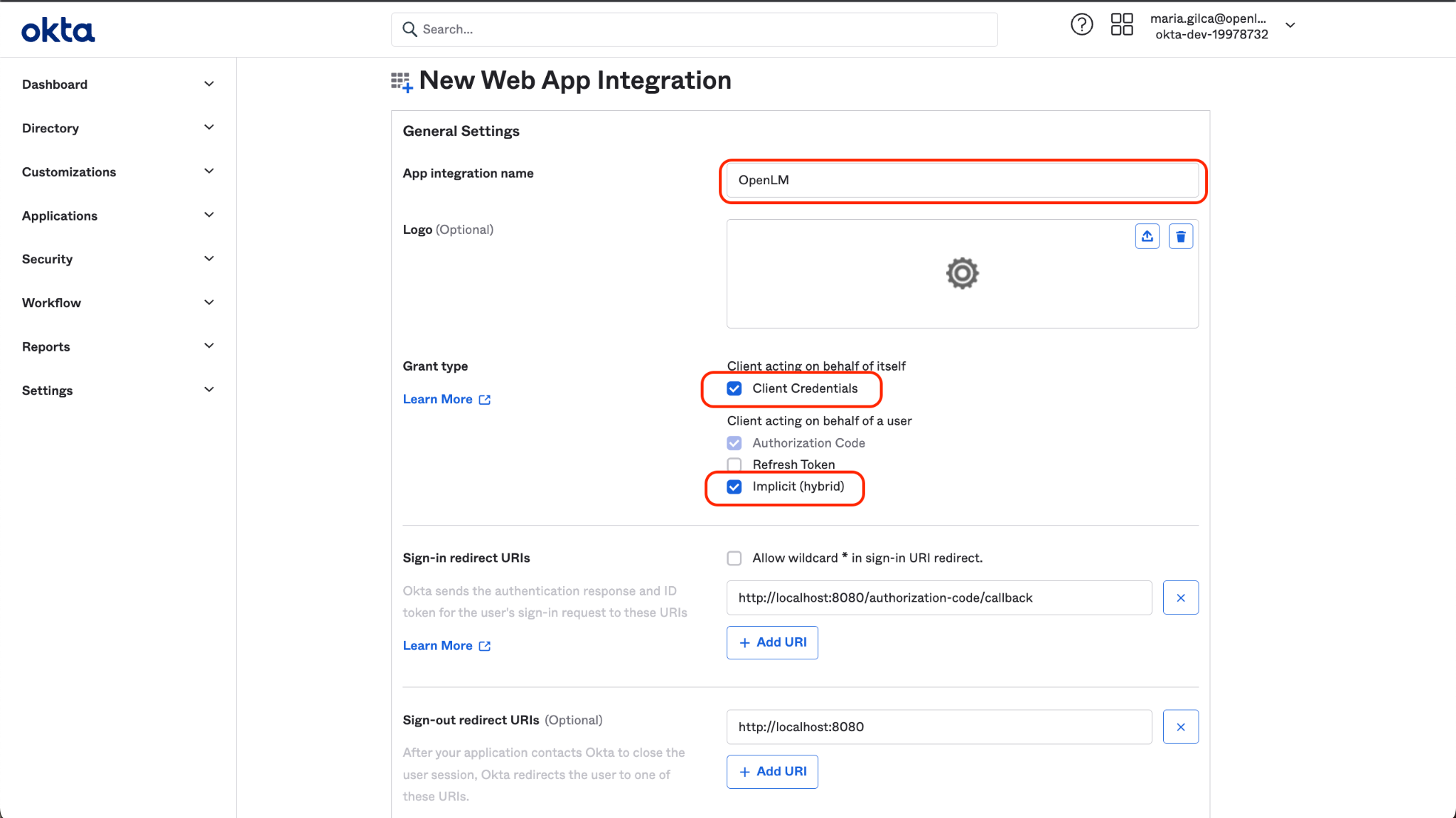

  4. Name the application and check the following boxes:
      • A. Client Credentials
      • B. Authorization Code
      • C. Implicit (Hybrid)

  5. Leave the URIs unchanged, the correct URIs will be provided by OpenLM after the integration is imported on the side of OpenLM at a later stage. Scroll down and click Save. (Step 9).

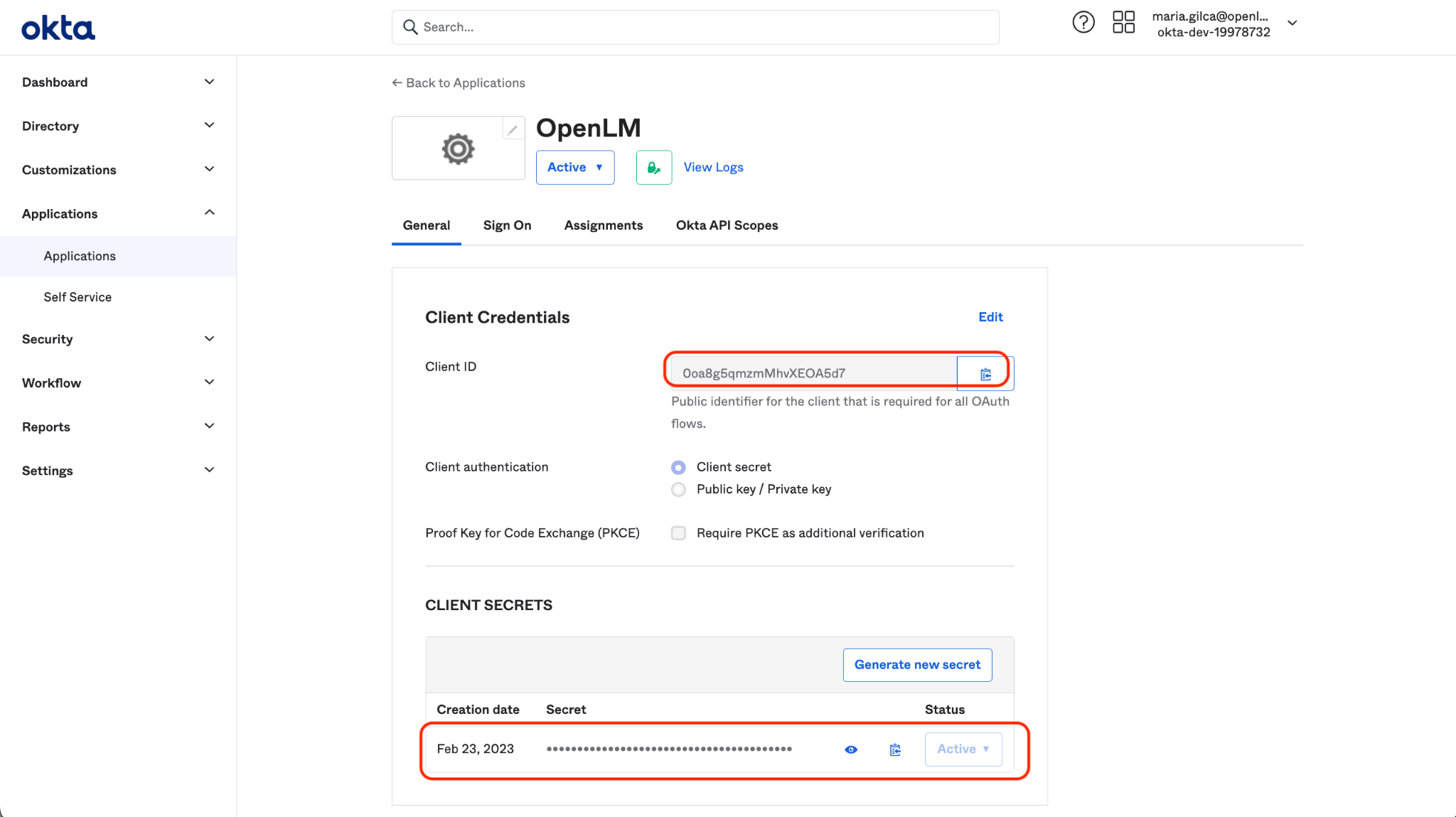

    After clicking Save, this prompt will appear:


    Note the Client ID and Client and Client Secret. Leave this window open for a while, we will return collect the Client ID and Client Secret.

OpenLM on-premise configuration #

  1. Go to the OpenLM Identity Service →External Providers tab.
  2. Click Add Provider. From the Provider type drop-down list select Okta.

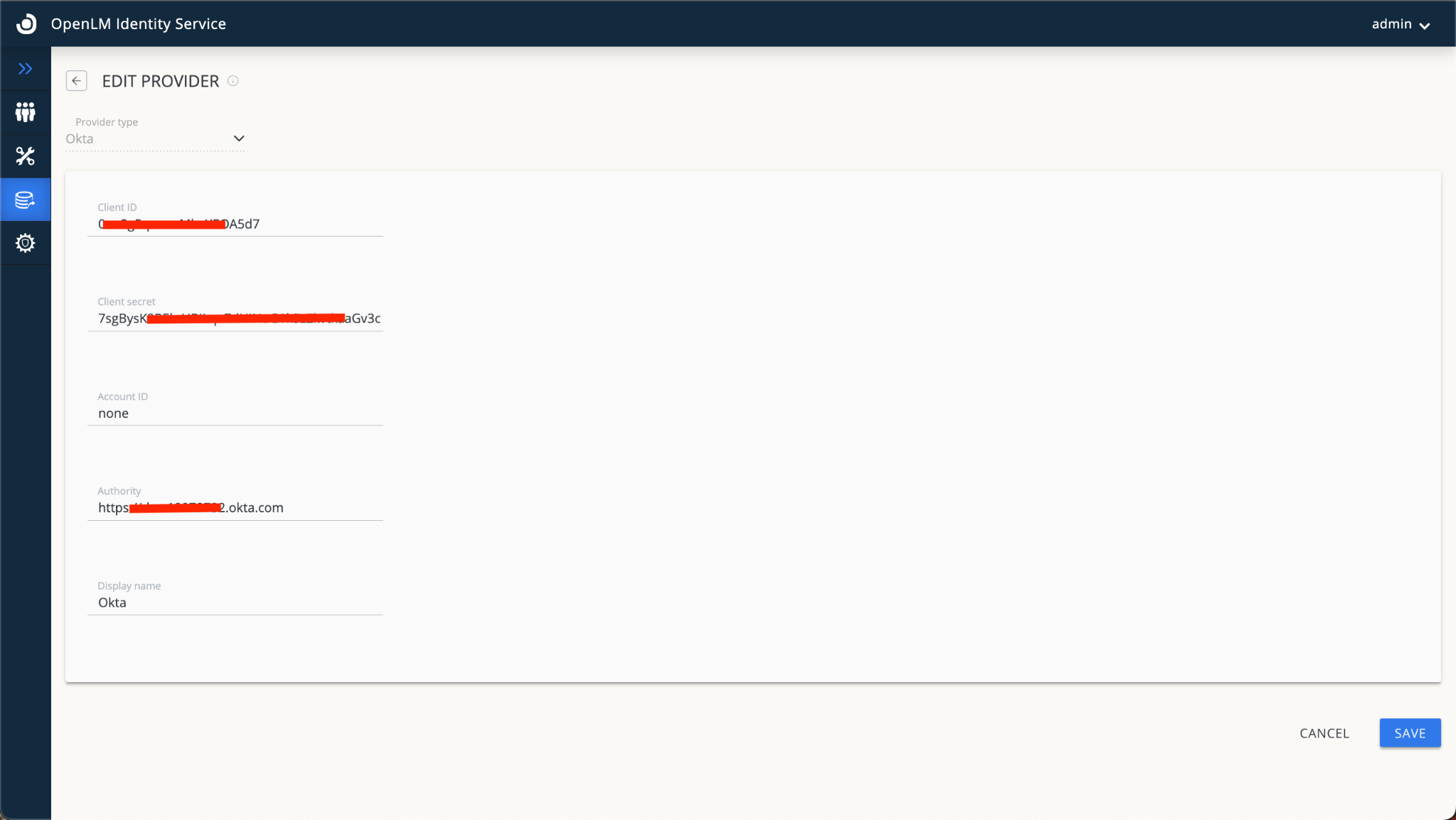

  3. Fill in the following fields with the information from your Okta Account:
  4. Provide a name at your convenience, for example, Okta.
    A. Client IDClient Secret
    B. Account ID – None

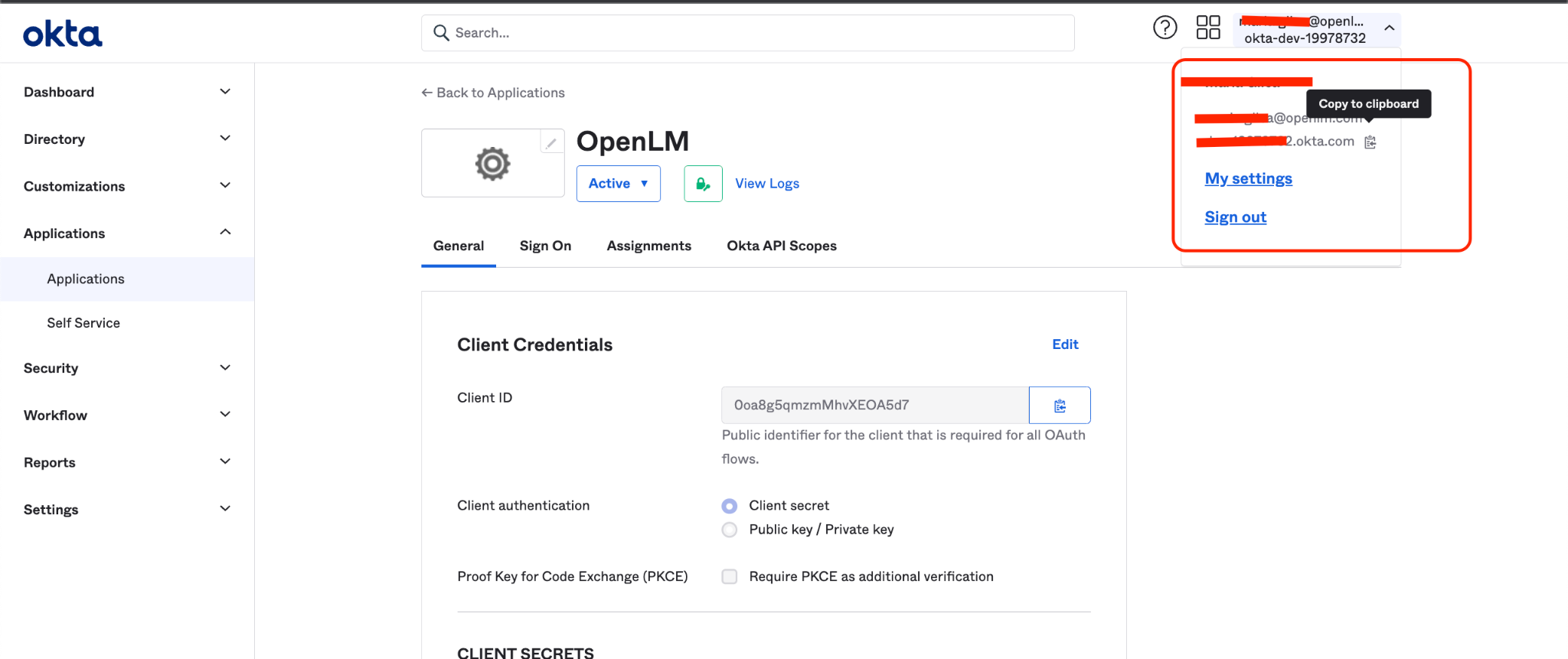

    C. Authority – your Okta ID as depicted below:
  5. Click Save.

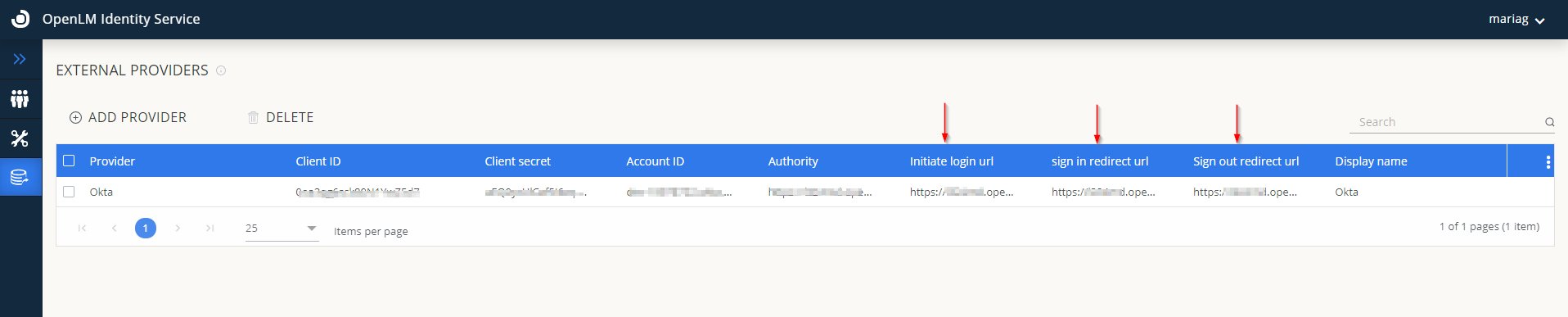

  6. After the import is completed on the OpenLM Identity Service side, the correct URIs tied to your account will be generated.

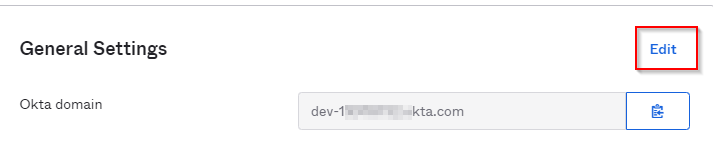

  7. Go back to your OKTA account. Click Edit on General setting Section:

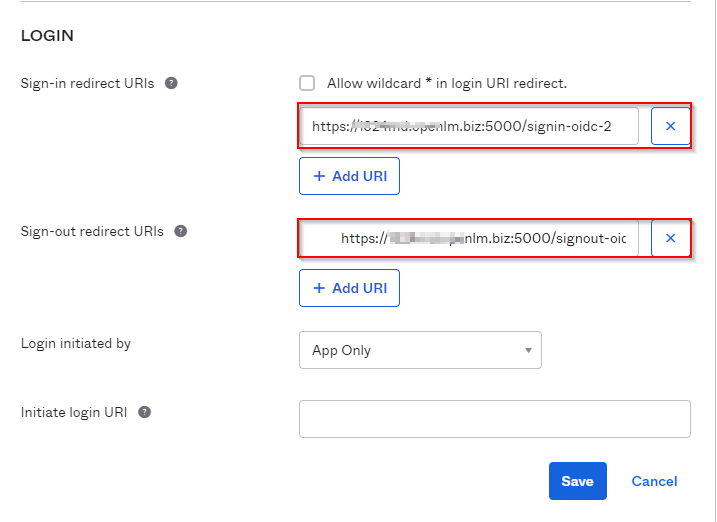

  8. Scroll down to the Login Section. Input data from OpenLM Identity Service: signin and signout redirect URLs. Click Save.

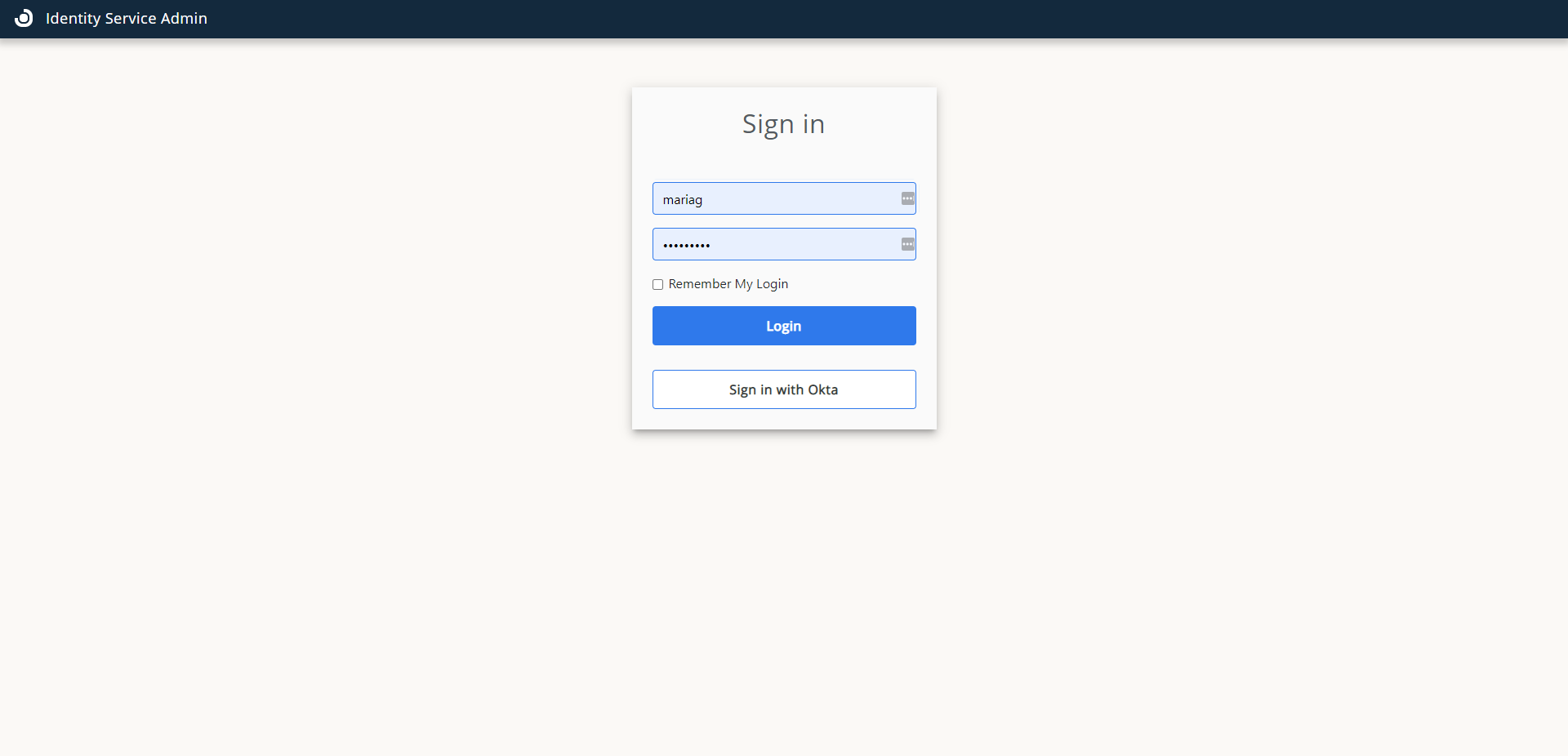

  9. Go to the Identity Service webpage. Log out. Now you will be able to login with OKTA:

OpenLM Cloud Configuration #

If you are an OpenLM Cloud User, follow these steps to configure OKTA as an external Identity provider:

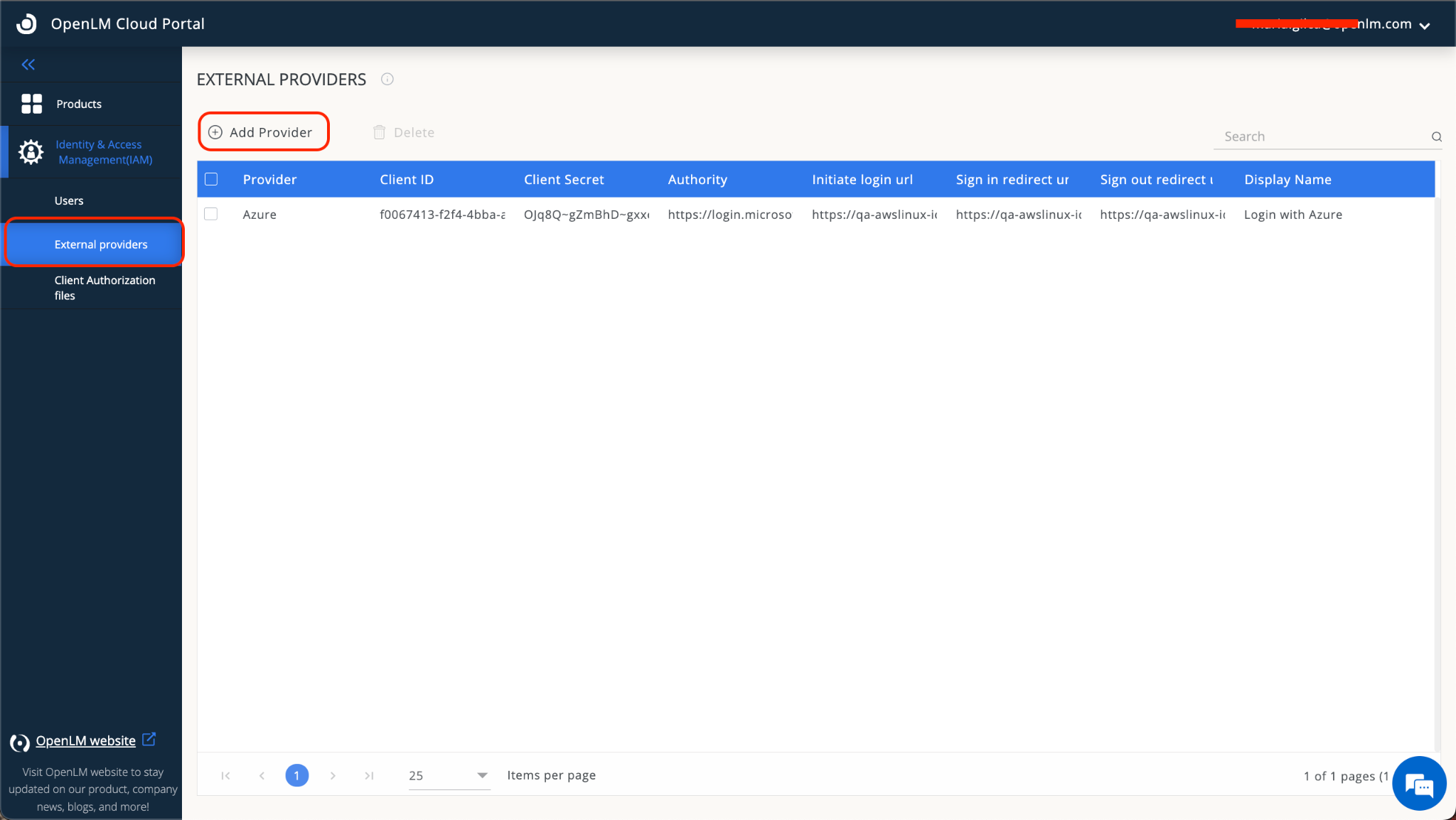

  1. Navigate to your Cloud Portal instance→Identity&Access Management (IAM)→External Providers→Add Provider.

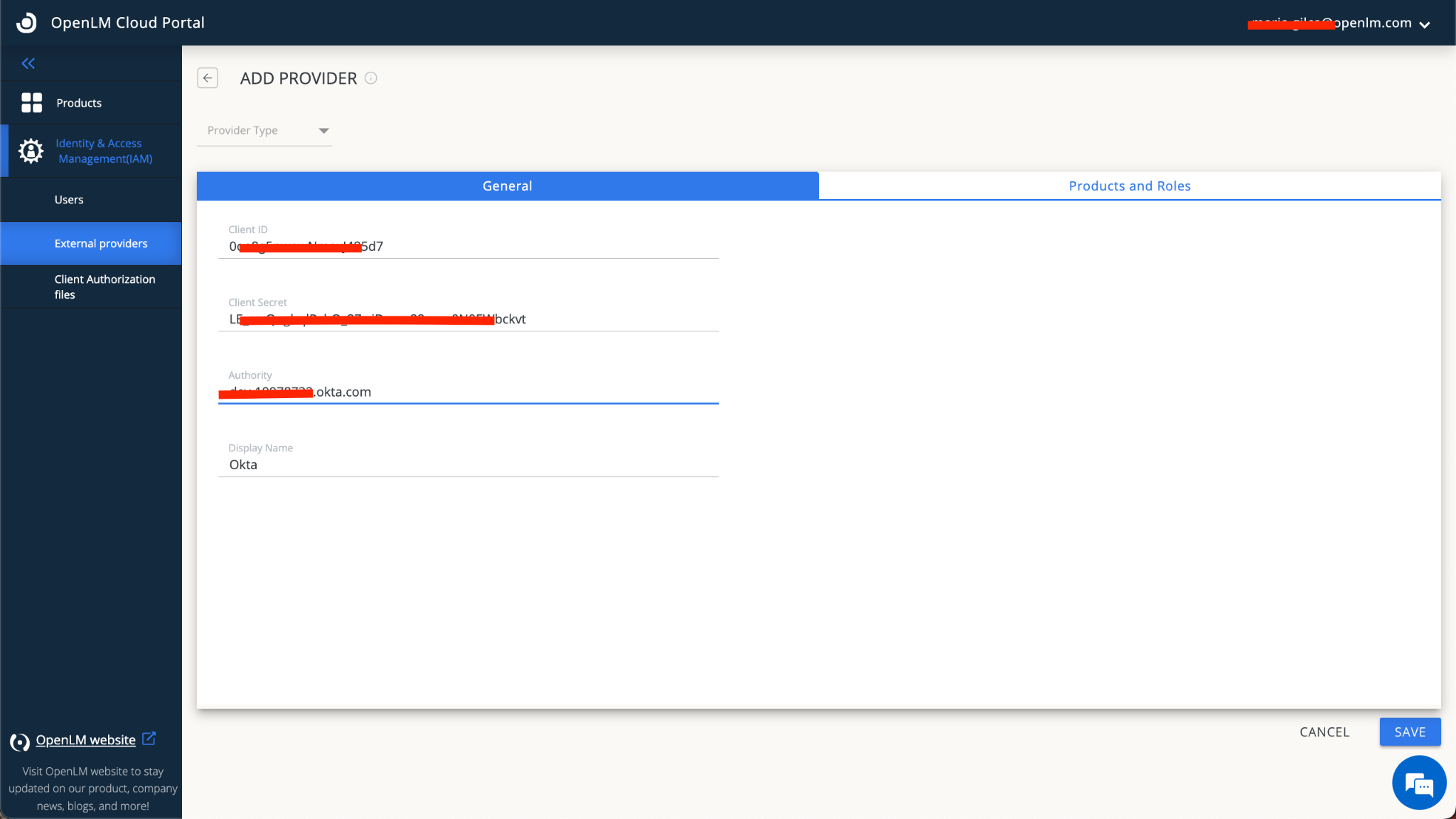

  2. Input the following details from your Okta account:
    A. Client ID
    B. Client Secret
    C. Authority (example: dev-12345678.okta.com).
  3. Provide a public button name (example: Okta).

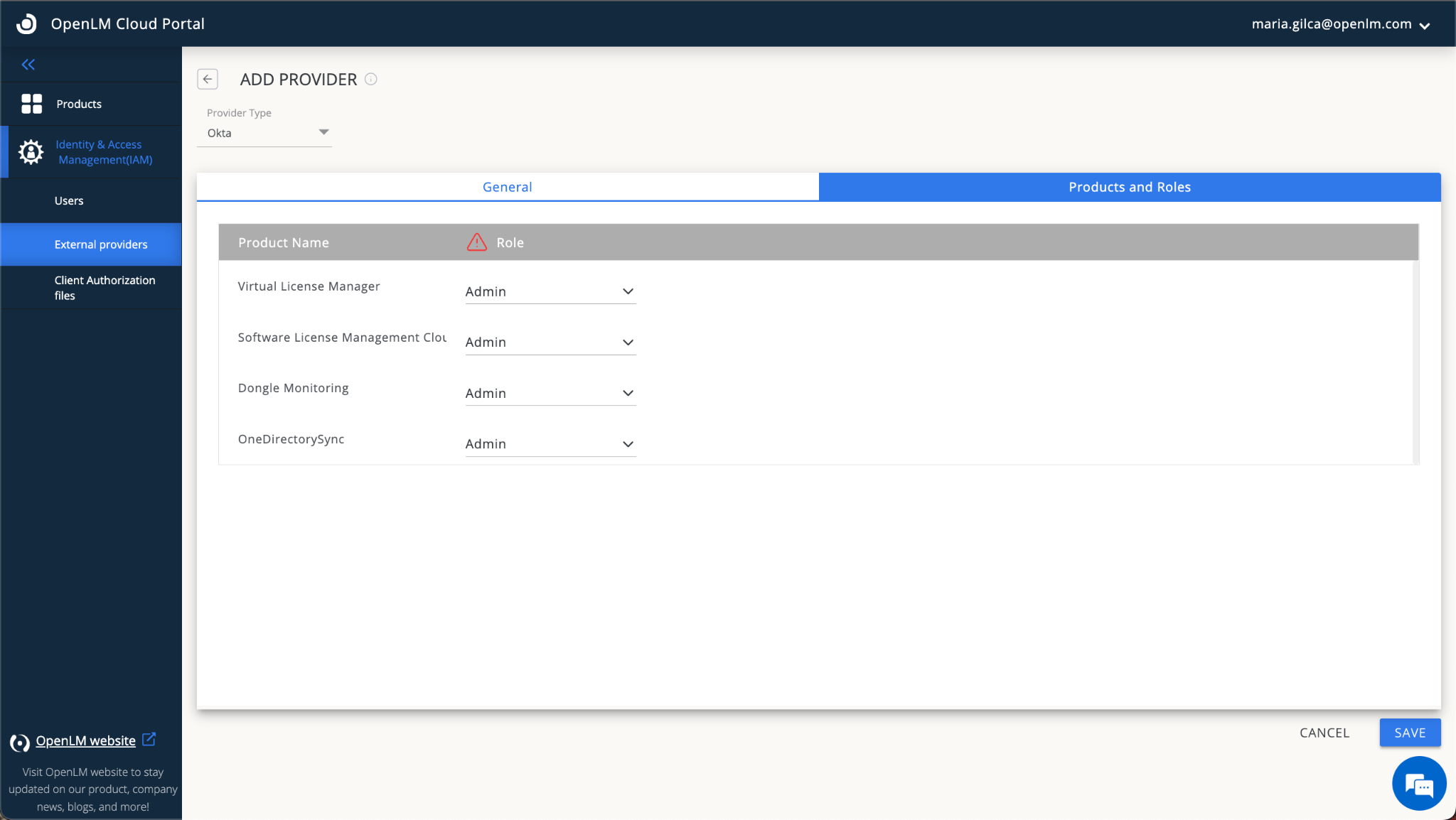

  4. Switch to the Products and Roles tab. For the following products:
    A. Virtual License Manager
    B. Software License Management Cloud
    C. Dongle Monitoring
    D. OneDirectorySync
  5. Choose either Admin or Manager role.

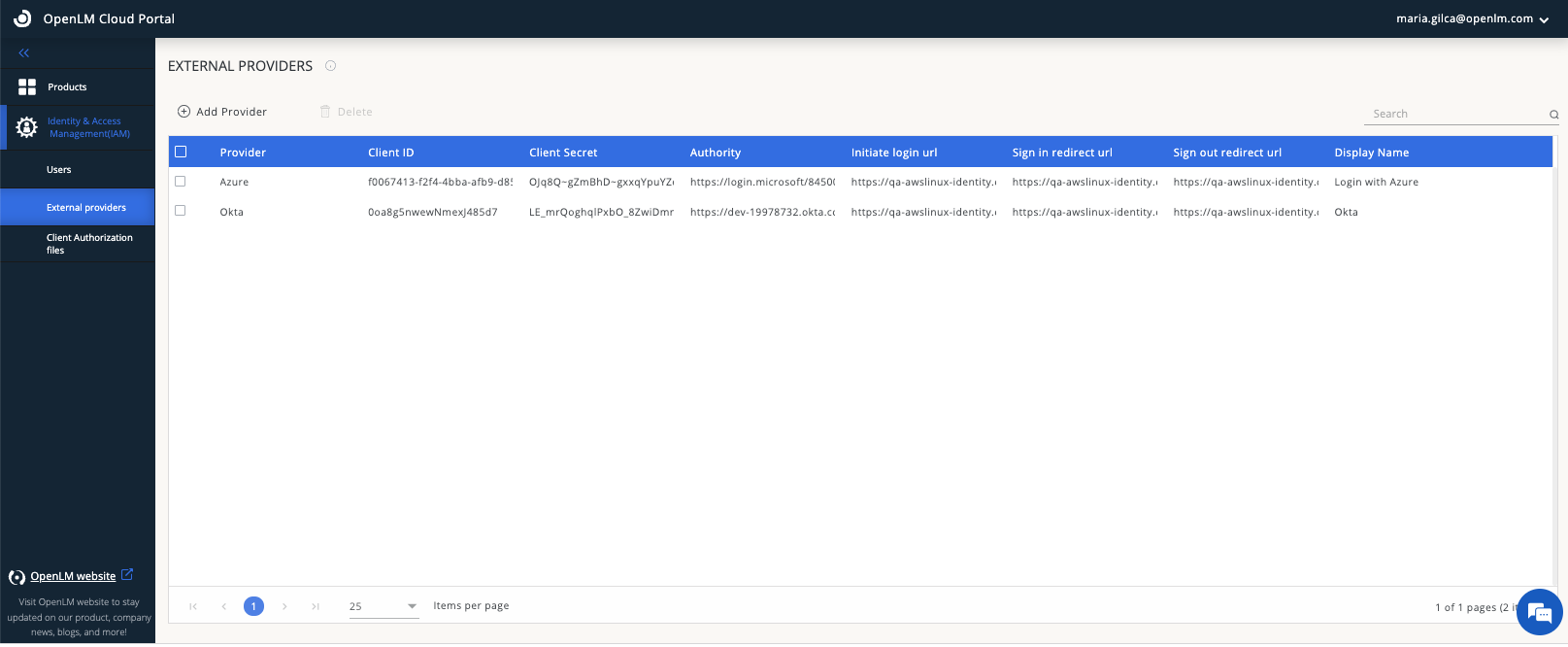

  6. Click SAVE. After the import is completed on the OpenLM Identity&Access Management side, the correct URIs tied to your account will be generated.

  7. Go back to your OKTA account. Click Edit on the General setting Section.
  8. Scroll down to the Login Section. Input data from OpenLM Cloud Portal: signin and signout redirect URLs. Click Save.
  9. Go back to your Cloud Portal and Sign out. Sign – in again using this pattern:
    https://cloud.openlm.com/portal?loginAccountId=123456789

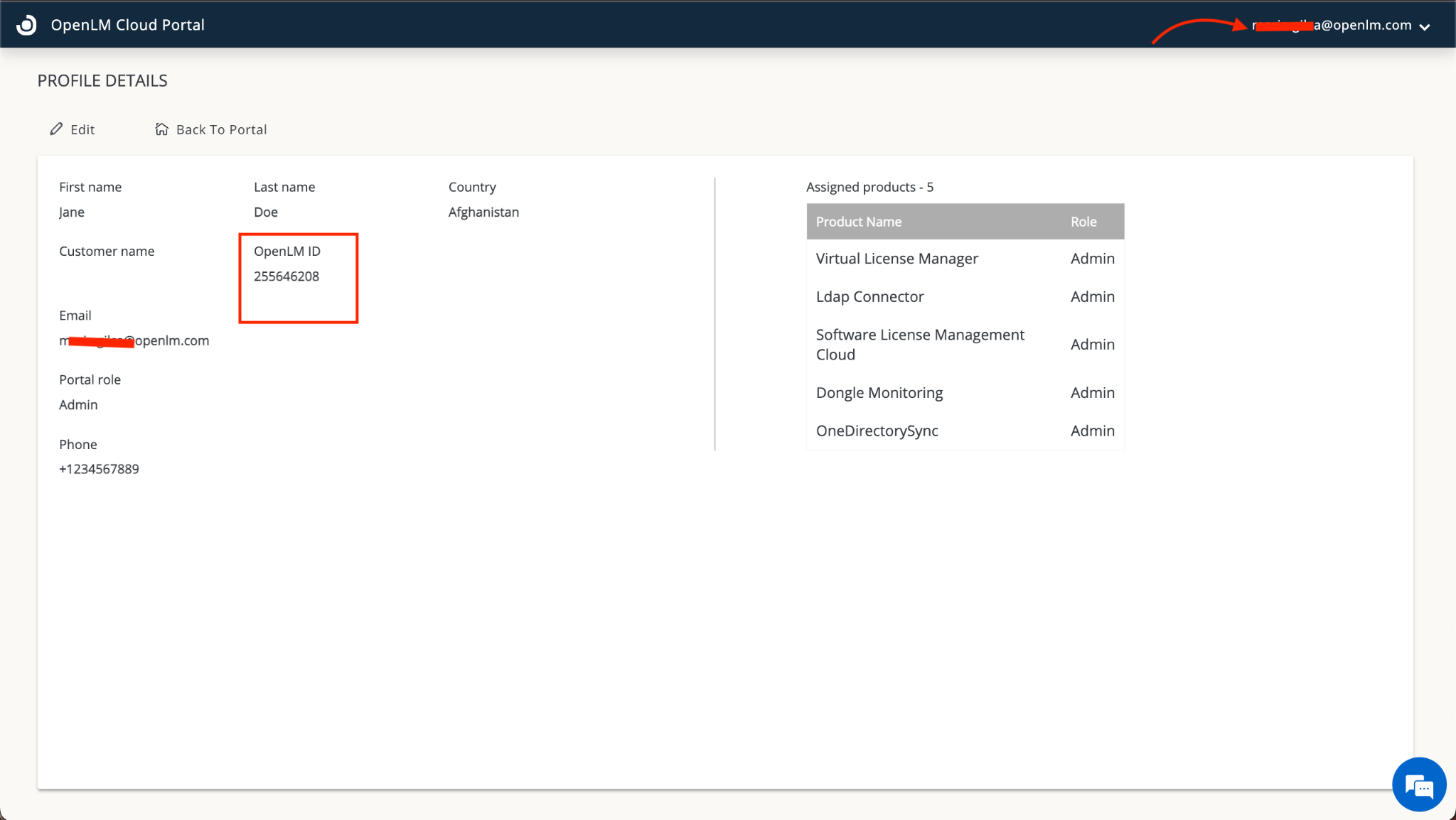

    Note: The OpenLM Account Id is taken by clinking on the drop-down arrow in the upper right corner, next to your user name:
