Consuming the OpenLM API v4 in your Dashboard
Deprecation note: SOAP methods are no longer supported on OpenLM Server v5.x.
The following document describes a number of methods and code samples that show how to consume the OpenLM v4 API in an application.
You can also check out this archive which contains a sample C# project along with a short video that explains how to configure and compile the project.
For additional methods and classes that were added to the API since version 4, please consult the following documents:
If your OpenLM install has Windows Authentication enabled, consult this document.
Table of Contents
Get Top X Denied Features in Last Y Days
Get Top X Denied Users in Last Y Days
Response: DenialsChartResponse
C# Samples (for On-Premise and SaaS modes)
Get Top X Most Used Features in Last Y Days
Get Top X Users of Most Used Features in Last Y Days
API Method: GetLicensesActivityByGroup
Request: LicensesActivityRequest
Response: LicensesActivityByGroupResponse
LicenseActivityByGroupResponse
C# Samples (for On-Premise and SaaS modes)
Get Top 10 Current Longest Idle Sessions
Get Top 10 Current Longest Usage Sessions
API Method: GetCurrentlyConsumedLicenses
Request: CurrentlyConsumedLicensesRequest
Response: CurrentlyConsumedLicensesResponse
C# Samples (for On-Premise and SaaS modes)
Request: GetLicenseServersRequest
Response: LicenseServersResponse
C# Samples (for On-Premise and SaaS modes)
On-Premise mode API URL
http://[openlm_server]:7020/OpenLM.Server.Services/AdminAPI
SAAS mode API URL
http://saas.openlm.com/SaasService/Service.svc/soap
Get Top X Denied Features in Last Y Days
Get Top X Denied Users in Last Y Days
API Method: GetDenialsChart
Request: DenialChartRequest
| Property | Type | Description |
| SaasToken | String | An authentication session ID in SaaS mode. |
| BaseInfo | RequestBaseInfo | General request information includes: Session, Paging, User local settings, etc. |
| GetTrueDenialsOnly | Boolean | Retrieve only true denials |
| StartTime | SlimDateTime | Minimal time of denial |
| EndTime | SlimDateTime | Maximal time of denial |
| GroupBy | String | Field is grouped by: Feature or User |
Response: DenialsChartResponse
| Property | Type | Description |
| Points | KeyValuePair<String, Int64>[] | Array of grouped points, pair of Values and Count |
C# Samples (for On-Premise and SaaS modes)

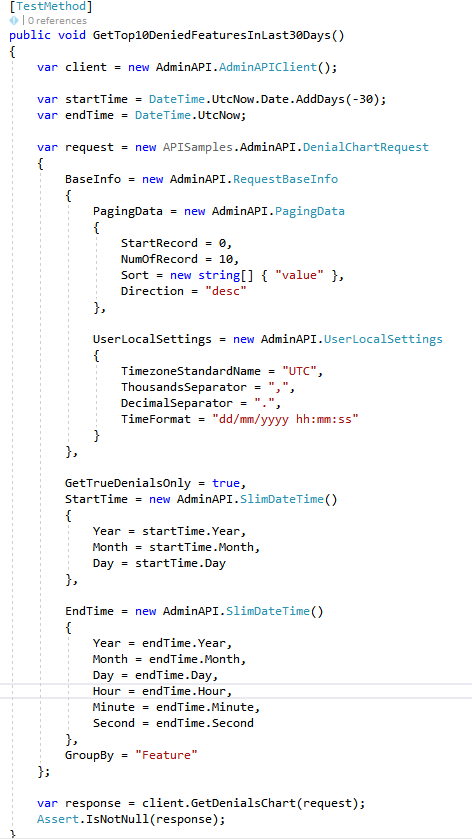

Test method in sample solution: AdminAPISamples.GetTop10DeniedFeaturesInLast30Days
Test method in sample solution: AdminAPISamplesSAAS.GetTop10DeniedFeaturesInLast30Days_SAAS
Test method in sample solution: AdminAPISamples.GetTop5DeniedUsersInLast30Days
Test method in sample solution: AdminAPISamplesSAAS.GetTop5DeniedUsersInLast30Days_SAAS
Get Top X Most Used Features in Last Y Days
Get Top X Users of Most Used Features in Last Y Days
API Method: GetLicensesActivityByGroup
Request: LicensesActivityRequest
| Property | Type | Description |
| SaasToken | String | An authentication session ID in SaaS mode. |
| BaseInfo | RequestBaseInfo | General request information includes: Session, Paging, User local settings, etc. |
| StartTime | SlimDateTime | Minimal time of usage activity |
| EndTime | SlimDateTime | Maximal time of usage activity |
| GroupBy | String | Field is grouped by: Feature or User |
Response: LicensesActivityByGroupResponse
| Property | Type | Description |
| LicensesActivities | LicenseActivityByGroupResponse[] | Array of license usage by group value (paging size) |
| TotalNumOfLicensesActivities | Long | Total number of license usage by group value |
LicenseActivityByGroupResponse
| Property | Type | Description |
| FilterUsageTime | Double | License Usage time within filter time (in hours) |
| GroupByField | String | Group field value |
| TokenFilterUsageTime | Double | Token Usage time within filter time (in hours) |
| TokenUsageTime | Double | Token Usage time (in hours) |
| UsageTime | Double | License Usage time (in hours) |
C# Samples (for On-Premise and SaaS modes)

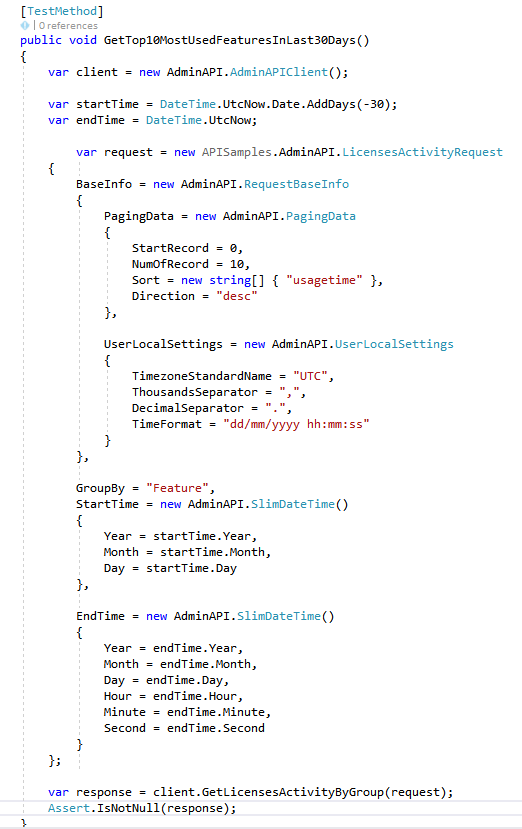

Test method in sample solution: AdminAPISamples.GetTop10MostUsedFeaturesInLast30Days
Test method in sample solution: AdminAPISamplesSAAS.GetTop10MostUsedFeaturesInLast30Days_SAAS
Test method in sample solution: AdminAPISamples.GetTop10UsersOfMostUsedFeaturesInLast30Days
Test method in sample solution: AdminAPISamplesSAAS.GetTop10UsersOfMostUsedFeaturesInLast30Days_SAAS
Get Top 10 Current Longest Idle Sessions
Get Top 10 Current Longest Usage Sessions
API Method: GetCurrentlyConsumedLicenses
Request: CurrentlyConsumedLicensesRequest
| Property | Type | Description |
| SaasToken | String | An authentication session ID in SaaS mode. |
| BaseInfo | RequestBaseInfo | General request information includes: Session, Paging, User local settings, etc. |
Response: CurrentlyConsumedLicensesResponse
| Property | Type | Description |
| Licenses | CurrentlyConsumedLicense[] | Array of current license sessions (in use or idle) (paging size) |
| TotalNumberOfLicenses | Long | Total number of current license sessions |
CurrentlyConsumedLicense
| Property | Type | Description |
| FeatureName | String | The feature name of consumed license |
| Version | String | The version of feature |
| LicenseType | String | The license type:
Floating, NodeLocked, NamedUser, SingleUse, NamedUserCasual, HostBased, Unmanaged, UserNameLocked, Token |
| AdditionalKey | String | The license additional key |
| ServerName | String | The name of LM server from where the license consumed |
| Vendor | String | The feature’s vendor |
| UserName | String | The user who consumed the license |
| IdleTime | String | The total idle time of current usage session (in seconds) |
| Duration | String | The total duration time of current usage session (in seconds) |
| NumOfLics | Int32 | The number of current license consumed |
| Quantity | Int32 | The maximal number of licenses purchased |
| Borrowed | Int32 | Is license borrowed: 1 or 0 |
| String | The email of user who consumed the license | |
| FirstName | String | The first name of user who consumed the license |
| LastName | String | The last name of user who consumed the license |
| GroupName | String | The default group of user who consumed the license |
| Handle | Int32 | A LM unique identifier for the license session |
| HostIds | String | Host identifiers, separated by “,” |
| HostName | String | The name of workstation on which the license was consumed |
| IP | String | The IP of workstation on which the license was consumed |
| IsFeatureAccurate | Char | Whether feature resolution is accurate:
‘1’ : Accurate ‘0’ : Multiple potential licenses exists |
| LingerDueDate | String | Borrowing end date |
| LingerTime | Int32 | Borrowing start date |
| PhoneNumber | String | The phone number of user who consumed the license |
| ProductName | String | The product name of consumed license |
| ProjectName | String | The default project name of user who consumed the license |
| RecentIdleTime | String | The idle time of recent period (in seconds) |
| StartTime | SlimDateTime | The start time when license consumed |
| UserIdleTime | String | The user workstation idle time (in seconds) |
| CloseAppEnabled | Boolean | Whether to enable close application button |
| RemoveLicenseEnabled | Boolean | Whether to enable remove license button |
C# Samples (for On-Premise and SaaS modes)

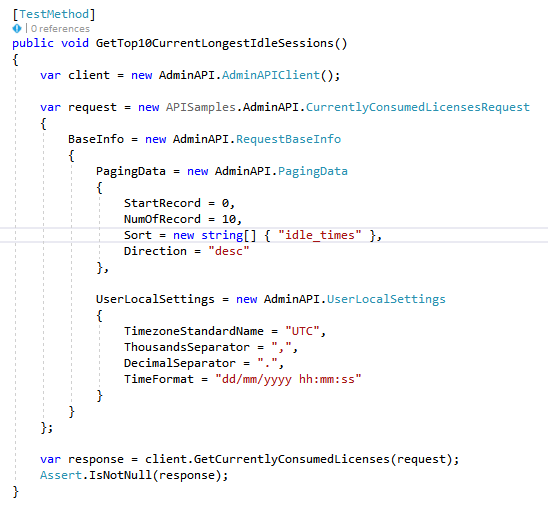

Test method in sample solution: AdminAPISamples.GetTop10CurrentLongestIdleSessions
Test method in sample solution: AdminAPISamplesSAAS.GetTop10CurrentLongestIdleSessions_SAAS
Test method in sample solution: AdminAPISamples.GetTop10CurrentLongestUsageSessions
Test method in sample solution:AdminAPISamplesSAAS.GetTop10CurrentLongestUsageSessions_SAAS
Get License servers status
API Method: GetLicenseServers
Request: GetLicenseServersRequest
| Property | Type | Description |
| SaasToken | String | An authentication session ID in SaaS mode. |
| BaseInfo | RequestBaseInfo | General request information includes: Session, Paging, User local settings, etc. |
Response: LicenseServersResponse
| Property | Type | Description |
| Servers | LicenseServerStatistics[] | Array of license servers |
LicenseServerStatistics
| Property | Type | Description |
| EnableStatus | LicenseServerEnableStatus | Disabled = 0,
Enabled = 1, Deleted = 2 |
| HasLicenseFile | Boolean | Whether a license file is read |
| Hosts | LicenseServerHostDetails[] | The hosts associated with license server |
| IsCandidate | Boolean | Whether a license server is a candidate to be configured (if not configured yet and broker sent data from that server) |
| IsUnlimited | Boolean | Whether server’s total licenses quantity is unlimited |
| ServerLM | String | The LM type:
FLEXlm, MathLM, LUM, RMS, HASP, LMX RLM, DSLS, BetaLM, OpenLM Generic, EPDM, SPLM, CodeMeter, LSDYNA, SlickEdit, GreenHills, Licman, OLicense, OpenLM App Manager |
| PermissionToAdministerServer | Boolean | Whether to enable broker commands button:
Start/Stop, Reread, File fetching |
| RecentSuccessfulQueryDate | SlimDateTime | The recent date of successful sample processing |
| ServerDescription | String | The description of server |
| ServerStatus | LicenseManagerStatus | UNKNOWN = 1,
DOWN = 2, UP = 3, PARTIAL = 4, // some hosts have issues in status NO_VALID_LIC_FILE = 5 |
| ServerStatusDesc | String | The description of server status |
| ServerStatusDate | SlimDateTime | The date of last reported status |
| TimeZone | String | The time zone on server |
| TotalBorrowed | Int32 | The total number of borrowed licenses |
| TotalQuantity | Nullable<Long> | The total quantity of purchased licenses |
| TotalUsed | Int32 | The total number of licenses in use |
| UsagePercent | Double | The percentage of used licenses (from total quantity) |
| ConfigurationIsDirty | Char | Whether server configuration was changed but OpenLM server has not been restarted yet |
LicenseServerHostDetails
| Property | Type | Description |
| BrokerInstallPath | String | The path of broker installation |
| BrokerVersion | String | The version of broker installed |
| EnableAdministration | Boolean | Whether to allow running broker commands:
Start/Stop, Reread |
| EnableFileFetch | Boolean | Whether to enable File fetching |
| HostID | Int32 | The id of host |
| HostLocalTime | String | The current local time on host machine |
| HostName | String | The hostname |
| Port | Int32 | The port on host |
| HostTimeZone | String | The time zone on host machine |
| JavaVersion | String | The java version installed on host machine |
| LmUptime | String | The status of host:
“UP {days} days, {hours} hours, {minutes} minutes” “BROKER DOWN” “LM DOWN” “NO BROKER” “NOT CONFIGURED” “BROKER SYNC” “UNKNOWN” “TIME DIFF ERROR” |
| PortStatus | String | UNKNOWN = 1,
DOWN = 2, UP = 3, PARTIAL = 4 |
| PortStatusSendTime | Nullable<DateTime> | The time post status was sent |
| VendorStatusMessage | String | The message of port status |
C# Samples (for On-Premise and SaaS modes)
Test method in sample solution: AdminAPISamples.GetLicenseServersStatus
Test method in sample solution: AdminAPISamplesSAAS.GetLicenseServersStatus_SAAS
Common types
RequestBaseInfo
| Property | Type | Description |
| SessionData | SessionRefresh | Session Data |
| PagingData | PagingData | Paging Data |
| UserLocalSettings | UserLocalSettings | User localization settings:
Date time format, Time zone, etc. |
| IsExport | Boolean | Whether to get exported to csv results |
| CustomerId | String | Customer’s identifier
Relevant to SAAS system only. |
SessionRefresh
Property |
Type |
Description |
| SessionID | String | The ID of session |
| Refresh | Boolean | Is manual refresh |
PagingData
UserLocalSettings
SlimDateTime
| Property | Type | Description |
| Year | Int32 | |
| Month | Int32 | |
| Day | Int32 | |
| Hour | Int32 | |
| Minute | Int32 | |
| Second | Int32 |
