How to change the OpenLM components’ ports

You are here:
< All Topics

Ports Changing

Please note, that it’s not enough to just change listening ports. After changing the listening port number, you need to make sure all other components which connect to it as a client, also need to be updated for the new port number. E.g. if you change Server port 5015 to something else, you also need to change other components to use the new port because they are connecting to Server API through 5015.

OpenLM Server

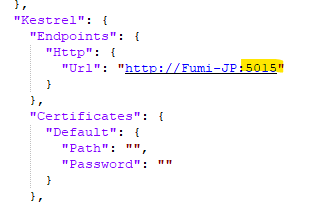

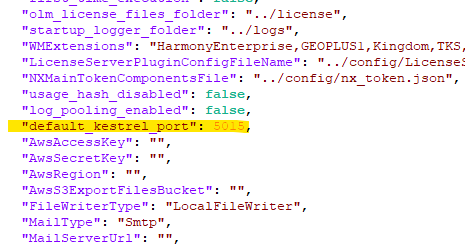

Access C:\Program Files\OpenLM\OpenLM Server\bin\appsettings.json to make the required changes:

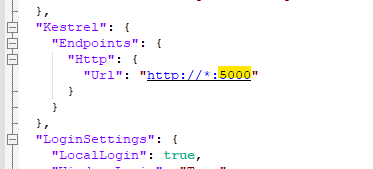

Identity Service

Go to C:\Program Files\OpenLM\OpenLM Identity Service\SecurityService\appsettings.json

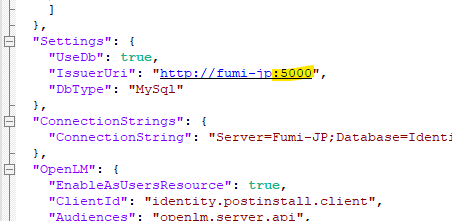

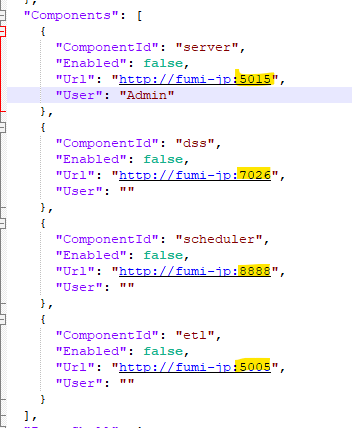

If you are changing ports of other components:

Broker

Change the ports of OpenLM Server, then you can use other ports other than 5015 in the Broker configuration tool.

Broker UI

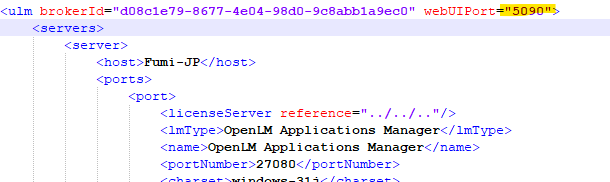

Access C:\Program Files\OpenLM\OpenLM Broker\broker.xml

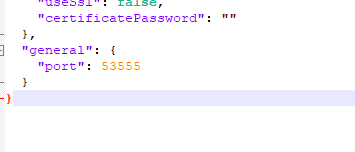

EUS

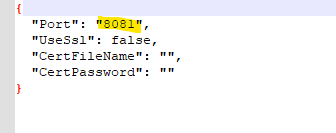

Access C:\Program Files\OpenLM\End-User Services\settings.json

If you are changing ports for other components:

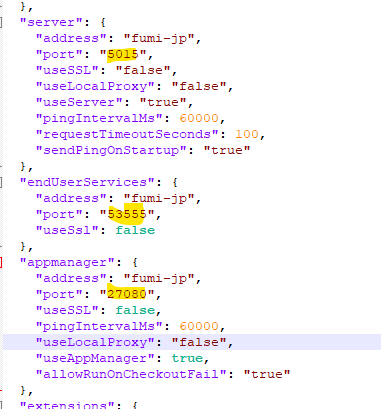

Agent

If you are changing ports for other components,

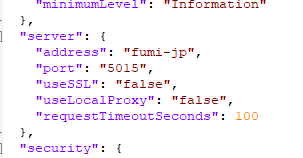

C:\Program Files\OpenLM\Agent\settings.json

Applications Manager

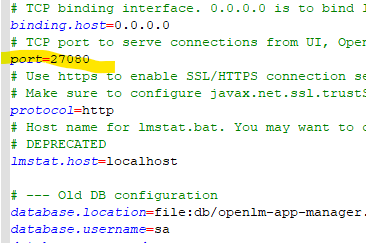

C:\Program Files\OpenLM\OpenLM Applications Manager\openlm-app-manager.properties

If you are changing ports for other components,

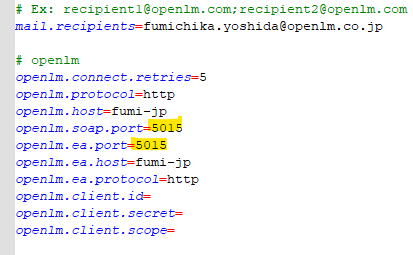

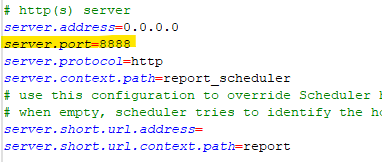

Reports Scheduler

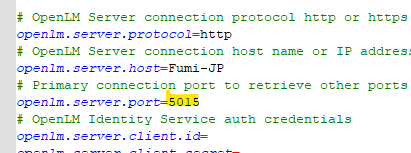

C:\Program Files\OpenLM\OpenLM Reports Scheduler\report_scheduler.properties

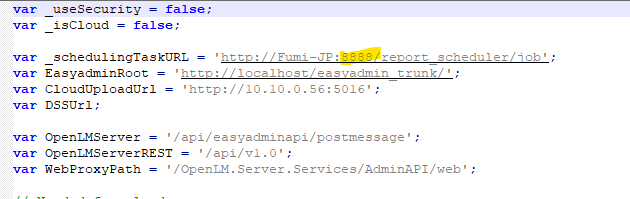

C:\Program Files\OpenLM\OpenLM Server\bin\wwwroot\params.js

If you are changing ports for other components,

C:\Program Files\OpenLM\OpenLM Reports Scheduler\report_scheduler.properties.

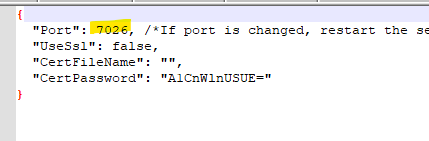

DSS

C:\Program Files\OpenLM\OpenLM Directory Synchronization Service\kestrel.config

DSA

C:\Program Files\OpenLM\OpenLM Directory Synchronization Agent\kestrel.config

If you are changing ports for other components,

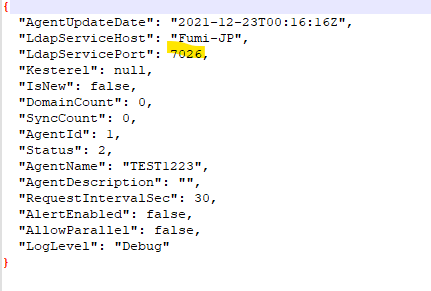

C:\Program Files\OpenLM\OpenLM Directory Synchronization Agent\OpenLM.Ldap.Agent.config
