License retrieval (Manual method), and Monitoring Idle Application time – KB4005a

You are here:
< All Topics

License managers may sometimes label licenses as occupied, when in fact they are idle and wasting limited company resources. System administrators can utilize the OpenLM EasyAdmin web interface to identify such conditions and retrieve idle licenses either manually or automatically.

This document describes how to monitor application idle time and harvest idle licenses manually. For information on retrieving licenses automatically – please refer to these documents:


 Idle application

If the user has not been actively using the license, the idle time period would be shown in the OpenLM EasyAdmin ‘Start’ → ‘Operational’ → “Currently consumed licenses” → “Recent App. Idle period” column. This information is sampled by the OpenLM Agent module on each client workstation, and propagated to the OpenLM server.


Setting a Process to License link

In order to obtain idle time information, follow the steps below

1. Make sure you have OpenLM Agent installed on the end user’s workstation.

2. Open the EasyAdmin interface: Windows Start → OpenLM → OpenLM EasyAdmin User Interface.

3. Click  the EasyAdmin Start –> Administration.

4. Select Process Features.

5. If the process you wish to monitor is not already in the list of processes, it will need to be added manually:

a. Click the Windows Start button.

b. Go to OpenLM  → Processes List. The Processes table window should appear.

c. Find the required process and copy its exact format name (case sensitive).

d. In order to add the new process to the currently managed processes’ list, click the  Add icon in the Process List frame, on the top right – hand side of the Process features window. The Add process window will appear. For processes that already exist in the process list, select them and click Edit. An identical Edit process window will appear (see below).

e. Add features to the selected application. You can add features one at a time by clicking the Add + on the bottom-right corner of the Process features window, or all of them by clicking the Add All Vendor’s features +.

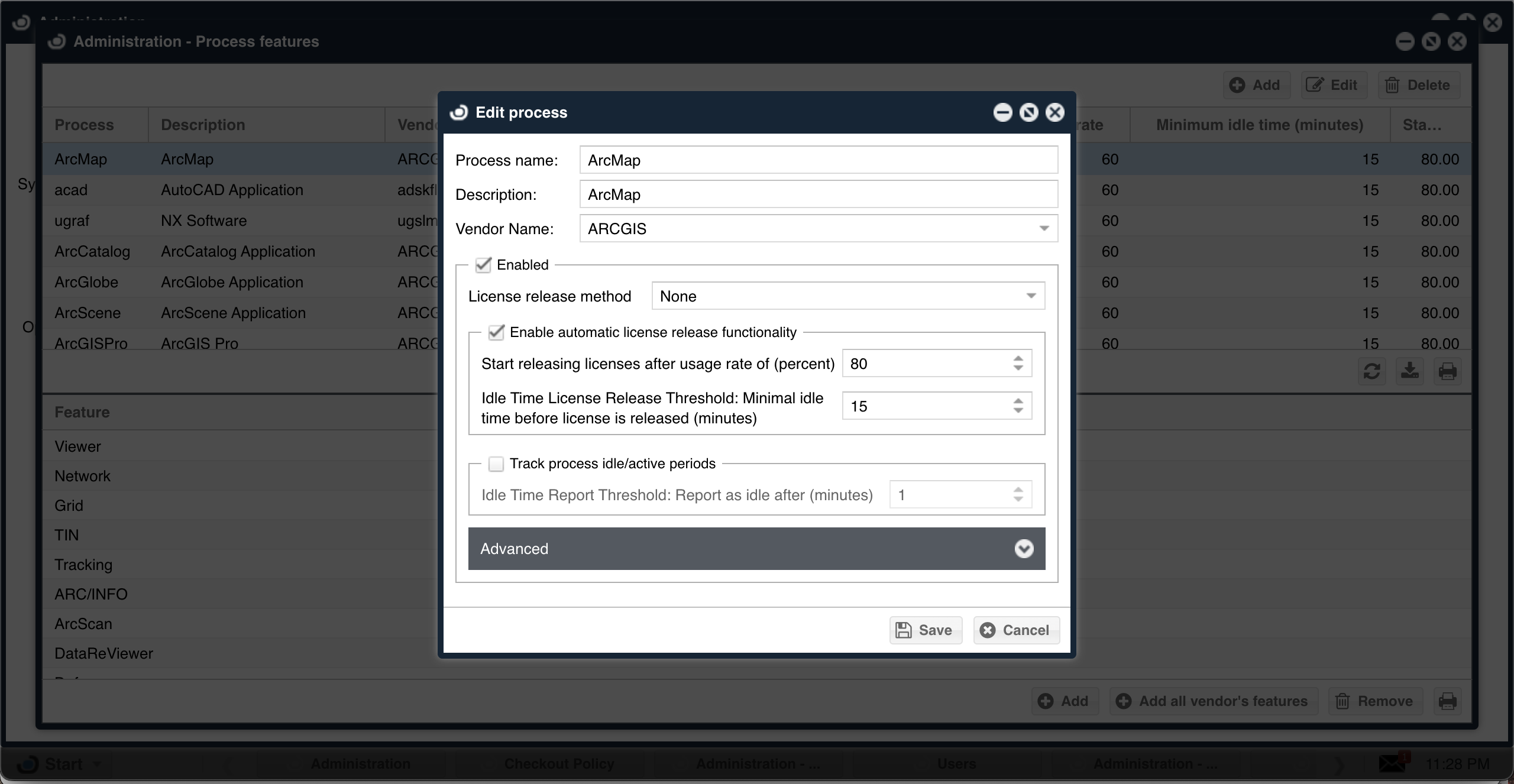

6. Configure the process window to monitor idle licenses:

  • Type the “Process name” as obtained in item 5c (above), e.g: ArcMap.
  • Input a description of the managed process, and
  • The application’s Vendor name exactly as appears at the license file. e.g.: ARCGIS
  • Check the Enabled box, and the Track process idle/active periods box.
  • Set the System resource thresholds. These numbers indicate the thresholds under which a process is considered idle.
  • Set the Idle time report threshold. This is the minimal period of time before an inactive session is reported as idle.

After completing the process described above in paragraphs 1 through 6, the Active Agent is set to monitor the managed process. For software suites like ArcGIS that use the same license for multiple applications (e.g. ArcMap, ArcCatalog, ArcGlobe), these steps will have to be repeated with the same idle time values for each application that you want to control.


Monitoring Idle time and retrieving licenses manually on the CCL window

To open the EasyAdmin Currently Consumed Licenses (CCL) Window: EasyAdmin Start →  Operational  →  Currently Consumed Licenses.

This window lists all currently active sessions. Using this window, Administrators can monitor individual workstations that run licensed applications. They can detect idle applications, and shut them down with a mouse click. In order to do so, an OpenLM Agent module must be installed on each client workstation.


Workstation Idle Time

The end user’s workstation idle time is recorded and presented in the “Workstation Idle time” column.


Recent Application Idle Period

Records the recent idle time of a specific application.


Linger Time

A lingering license stays checked out for a specified period of time beyond its check-in or FlexEnabled application exit, whichever comes first.


Linger Due

The Linger Due is the actual time the license is returned to the pool to be claimed by another user.


View Idle times

Click the dark-shaded crescent moon icon   for a graphic view of idle and active time as well as a list of idle periods.


License removal

Administrators have the option to manually remove a license from a specified workstation. This is done by highlighting the user row on the Active Products window and clicking the Remove License icon. There are several constraints that are specific to this feature:

  • The end user must have been inactive for a minimum period of time in order for this license to be retrieved. This value is set by default to 5 minutes in compliance with FLEXlm license manager’s limitations.
  • If the license is not associated with any real product activity on the specified workstation (as happens when a license gets artificially “frozen” on a computer), then the license will be released and returned to the pool of available licenses.
  • If the worker is actually using the product, then re-obtaining a license would be automatically attempted. If this happens the license for that product and workstation will reappear on the active products screen, with a new handle number.
  • Manual License removal does not work for ArcGIS 10.


Closing Applications

In order to manually close an application on the workstation,  an administrator should highlight the relevant row, and click the Close Application icon  .

This operation will retrieve the license back to the license pool, save the open project,  and the application itself will be shut down.

There are some constraints that are specific to this feature:

  • It requires a proper installation of the OpenLM Agent module.
  • It works only on extension enabled applications. At the time of writing this revision (Rev 2.0), these include Matlab, ArcGIS and AutoCAD.



There are several constraints that are common to both the License Removal and Application Closure features.These are as follows:

  • At the time of writing this revision (Rev 2.0), These features are only applicable to the FLEXlm license manager.
  • An OpenLM Agent module must be properly installed on each Client workstation.
  • Borrowed licenses (AKA “Linger licenses”) can not be retrieved via the EasyAdmin application.
