Using Custom Commands

[NOTE: Custom Commands were not intended to initiate long-running processes. There is a 2-minute limitation on the execution of any command. After 120 seconds wait, command execution will respond with a failure if it is not completed (an initiated application launch is considered a success.)]

The feature requires separate installation of component parts (e.g., OpenLM Server and OpenLM Agent), creation and identification of processes, and launch. OpenLM Broker enables additional functionality.

This document covers:

Please see dedicated documentation for more information on other components not contained in this document:

Custom Command License Download and Installation

The additional functionality for Custom Commands is free to use but requires downloading an additional license and acknowledgement of the OpenLM usage agreement.

1. Request Custom Command access from OpenLM by sending an email to OpenLM sales (sales@openlm.com). After the request, an email will be sent to the address provided. Please be sure to add the sending address (license@openlm.com) to your list of approved contacts if you use spam filters.

2. Open the email and respond by clicking the License Download Link. This will open a web page to login (see Figure 1). This page can only be used one time as the one-time access token will expire.

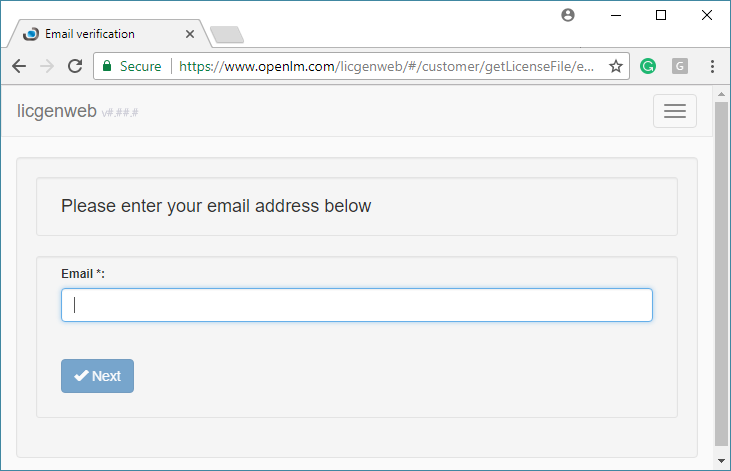

Figure 1: The login page.

3. Enter the email address used to obtain the link.

4. Click [Next] to advance to the Terms and Conditions form (see Figure 2).


Figure 2: The Terms and Conditions form.

5. Read the agreement form.

6. Check the “I agree to these terms and conditions” only if all of the terms and conditions are acceptable.

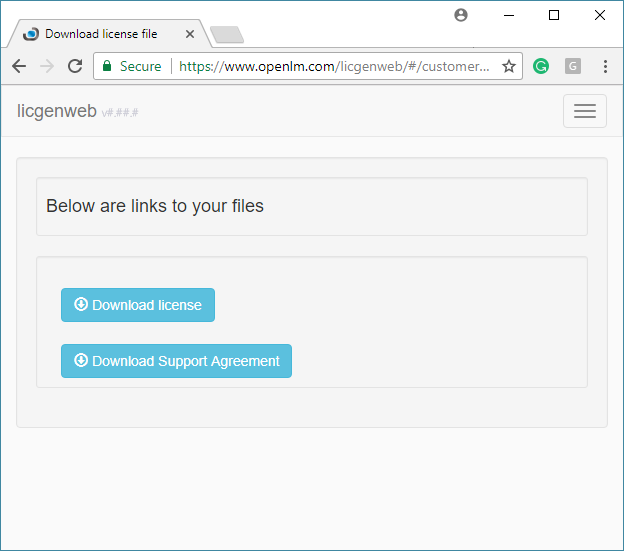

7. Click the [Download Now] button. This will advance you to the download page where there are options for downloading the license and the support agreement (see Figure 3).


Figure 3: The download page.

8. Locate the license file in the download folder used by your browser (e.g., C:UsersuserDownloads).

9. Copy the license file to the OpenLM Licenses folder (e.g., C:Program Files (x86) OpenLMOpenLM ServerLicense).

10. Restart the OpenLM Server for the license to take effect and activate Custom Commands.

OpenLM Services Check

You will need to check that services are running in order to use Custom Commands successfully. This check includes the following described in the steps below:

  1. Check the connection to OpenLM Server
  2. Check on availability of OpenLM SoftwareLocker



A. Check the Connection to the OpenLM Server

1. Open the OpenLM Agent Configuration tool. This is located in the Show Hidden Icons menu at the right of the Windows Taskbar. See Step #1.a to Step #1.c below along with Figure 4.

a. Click the arrow (1) to display the hidden icons panel.


Figure 4: Steps for opening the OpenLM Agent Configuration tool.

b. Right-click the OpenLM icon (2) and a pop-up menu will appear with a link to the OpenLM Agent Configuration screen (3).

c. Click the link to open the Agent Configuration screen (see Figure 5).

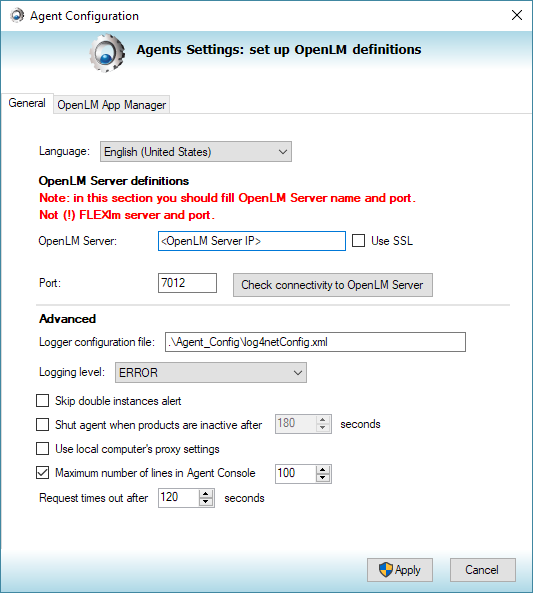

Figure 5: The OpenLM Agent Configuration screen.

2. Click the [Check Connectivity to OpenLM Server] button. A screen should appear confirming the connection to the server (see Figure 6). If the check is successful skip to Step #3. If the attempt to connect is not successful, a warning screen will appear (see Figure 7). If the warning appears, check that the server is running, that the configuration is correct, and repeat this step. If the connection is still not successful, contact OpenLM support (support@openlm.com).

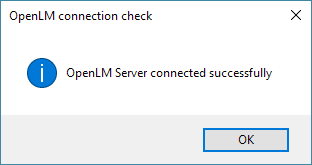

Figure 6: The server connection check success screen.


Figure 7: The server connection warning screen.

3 . Click [OK] to close the success screen.

4. Click [Apply] to save the changes. The OpenLM Agent Configuration Tool will close.

The connection to the server is confirmed and Custom Command functionality should be enabled.



B. Check on Availability of OpenLM SoftwareLocker

To run scripts as a service from OpenLM Server on the workstation, you will need to be sure OpenLM SoftwareLocker is running on the workstation. This check is only necessary for those planning to customize Agent Procedures using OpenLM Server and the agent service (i.e., OpenLM Agent installed with the ‘install service’ option at a minimum. See the OpenLM Agent Installation documentation for more information). If this functionality is not desired, it does not affect other capabilities; skip to Creating Custom Commands with Agent Procedures. To check availability, follow the steps below.

1 .Open Windows Services (e.g., C:WINDOWSsystem32services.msc or type “Services” in the Windows search on the taskbar and choose the Services App from the result).

2 .To do this, locate OpenLM SoftwareLocker in the Name listing and right-click. The popup menu will reveal the status (e.g., if the service is running, the “Start” item will not be available.).

3. If the service is not running, right-click the service name in the Windows Services screen and choose “Start” from the pop-up menu.

4. When the service is running (see Step #2), close the Services window by clicking the [X] in the upper right of the screen.

With services running and the server connection validated, it is time to create and configure custom commands.

Creating Custom Commands with Agent Procedures

Procedures initiated by Custom Commands may take multiple criteria into account as well as initiating the steps in a productive workflow. The basic steps for setup of Agent Procedures is completed in EasyAdmin using the following outline:

  1. Define Custom Agent Procedures
  2. Define Unmanaged Processes
  3. Configure Unmanaged Processes to Enable Custom Procedures



A. Define Custom Agent Procedures

1. Open EasyAdmin [Start] > [OpenLM] > [OpenLM EasyAdmin]. This will launch a web browser session for OpenLM EasyAdmin. The session will open with the Alerts, Feature Usage Status, and License Servers screens visible by default.

2. Click [Start] on the EasyAdmin start bar and select [Administration] from the menu (see Figure 8). This will open the Administration screen (see Figure 9).

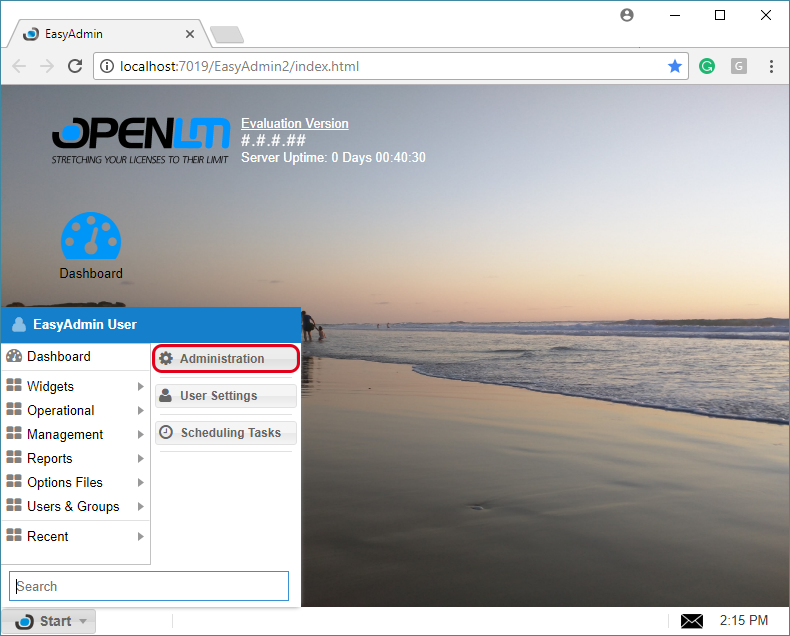

Figure 8: Select Administration from the EasyAdmin Start menu.

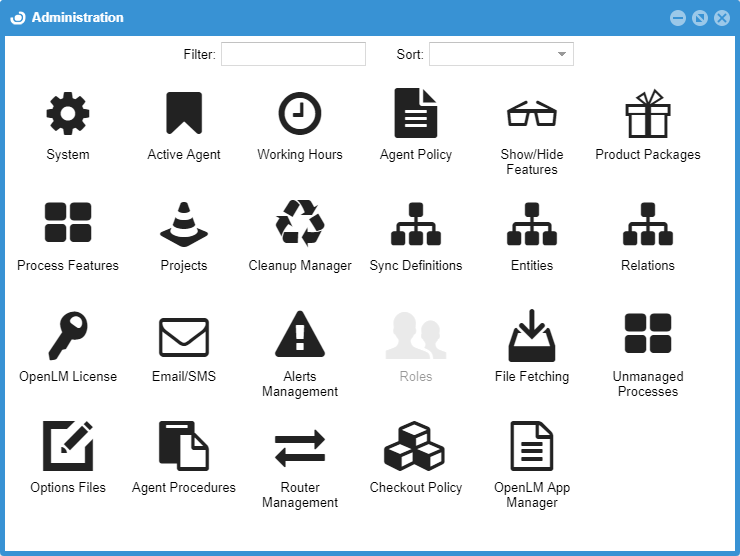

Figure 9: The EasyAdmin Administration screen.

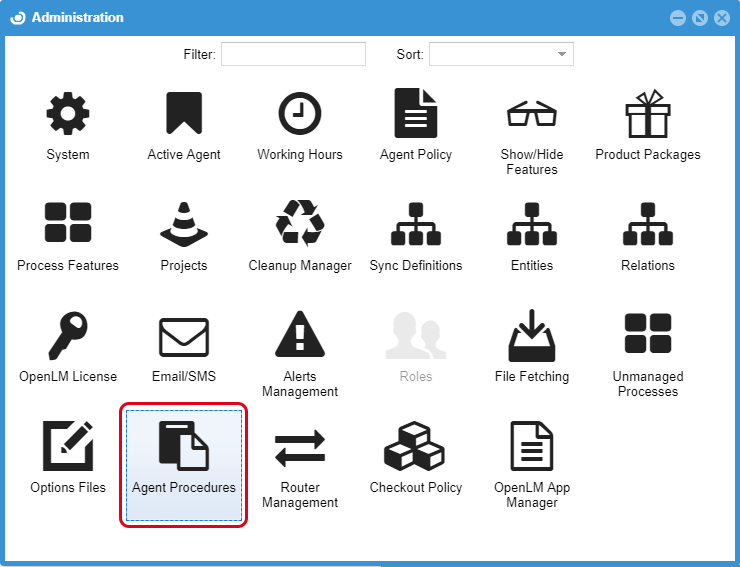

3. Click the Agent Procedures icon on the Administration screen (highlighted in Figure 10) to open the Administration — Agent Procedures screen (see Figure 11).

Figure 10: The Administration screen with Agent Procedures highlighted.

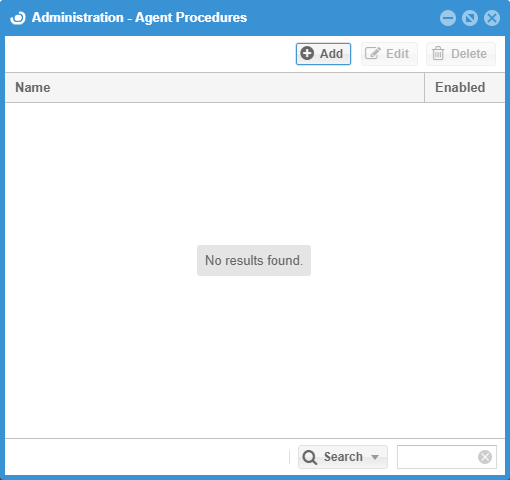

Figure 11: The Agent Procedures screen.

4. Click on the [Add] button. This will open the Agent Procedure Editor screen (see Figure 12). The Enabled box will be checked by default.

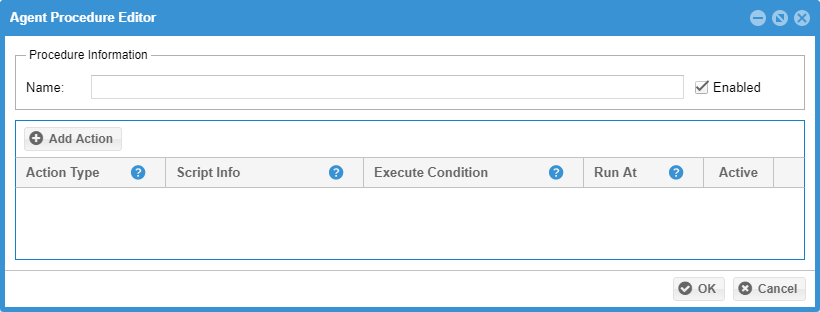

Figure 12: Agent Procedure Editor screen.

5. Enter a Name for the procedure in the Name field. This is a free text field. It is helpful to use a name that is easy to identify as the name will appear in the Administration — Agent Procedures screen when later adding, editing or deleting items in the Custom Command setup. Standardizing naming schemes is recommended.

6. Click on the [+Add Action] button on the Agent Procedure Editor screen. This will add a row to the bottom panel of the screen with default values (see Figure 13). Default values are listed below.

Action Type = License Manager

Script Info = <Empty>

Execute Condition = NoWait

Run At = <Empty>

Active = [Checked]

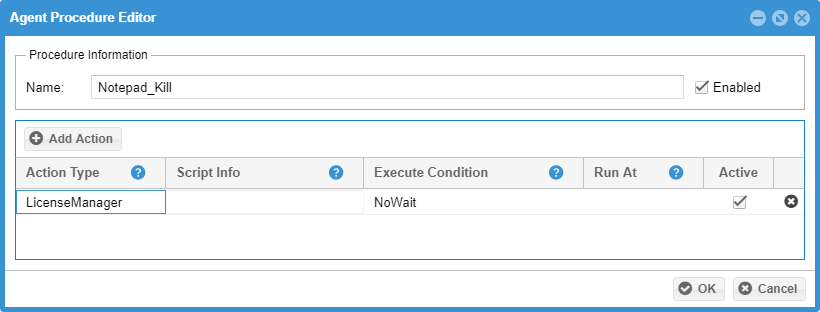

Figure 13: Agent Procedure Editor screen with new row added.

7. Choose an Action Type. To do this follow Step #7.a to Step #7.c.

a. Double-click the default value for the Action Type in the new row to activate the field.

b. Click the arrow that appears on the right of the field to open the Action Types options (see Figure 14).

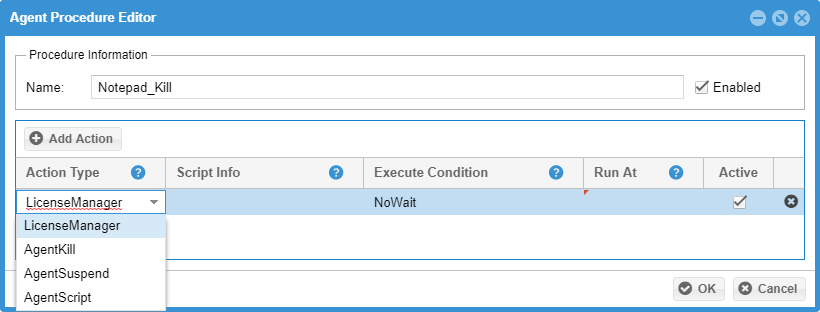

Figure 14: View of the Action Type drop menu.

c. Select “AgentScript” by clicking on it the drop menu. [NOTE: “AgentScript” is the only value applicable to Custom Commands.]

8. Enter the Script Info. To do this follow Step #8.a to Step #8.c.

a. Double-click the Script Info field.

b. Add the script. Script options are available in the interface by clicking the [?] icon. The following list summarizes these options. Table 1 includes example commands.

  • The Script Info field should contain commands using Windows Shell scripting.
  • Any executable file or application needs to be defined by a full path.
  • Selecting ‘Wait Success’ as an Execution Condition executes a command only after the previous command is successfully completed.
  • Prefixing any script line with ‘@’ executes the command line and moves to the next action without waiting for the action to complete (e.g., if a script prefixed with ‘@’ initiates copying files, the OpenLM Server will not wait for the files to copy before initiating the command that follows).
  • Script lines without an ‘@’ prefix execute the command line and moves to the next action after waiting for the action to complete (e.g., if a script without ‘@’ prefix initiates copying files, the OpenLM Server will wait for the files to copy before initiating the command that follows).
Example commands:
Activate an application and launch the next action @<path>[filename].exe
Activate an application and wait for it to end before launching the next action <path>[filename].exe
Activate a batch command and launch the next action @<path>[filename].bat
Activate a batch command and wait for it to complete before launching the next action <path>[filename].bat

Table 1: Command examples with controlled execution.

c. Press [Return] or [Enter] on the keyboard to accept the changes to the script field.

9. [Optional] Change the Execute Condition which will be prepopulated. Execute Condition allows users to define how an action is implemented as per the options listed in Table 2. To change the condition follow Step #9.a to Step #9.d.

a. Double-click the Execute Condition field to activate it.

b. Click the down arrow to the right of the field to open the drop list of selections.

c. Choose from the drop list. [NOTE: The items in the drop list are context sensitive.]

Condition Description
No Wait This condition is the default for the first action. The script will be executed without waiting.
Wait Complete Executes only after the previous action is complete.
Wait Success Executes only after the previous action completes successfully. If a previous action completes with error, the procedure is terminated.

Table 2: Execution Condition options.

d. Press [Return] or [Enter] on the keyboard to accept the changes to the field.

10. [Optional] Choose a Run At option. Run At allows users to define how the script step should be run — by the Agent Application domain or the Agent Service domain (see Table 3 for condition descriptions). To choose a Run At option, follow Steps #10.a to Step #10.d.

a. Double-click the Run At field.

b. Click the down-arrow to the right of the field to reveal options for the field.

c. Select an option from the drop list by clicking directly on it in the list.

Condition Description
Application
  • Run the script in Agent Application domain, which is intended for on-screen viewing and user interaction (e.g., show messages or display applications)..
  • Runs as the current user’s UserName.
  • Cannot influence System-owned tasks.
Service
  • Run the script in Agent Service domain, which is intended for silent procedures (e.g., manage the registry or configure security).
  • Runs as the System user.
  • Cannot influence UserName-owned tasks

Table 3: Run At options.

d. Press [Return] or [Enter] on the keyboard to enter the changes.

11. Repeat Step #6 to Step #10 for other procedures that will be part of the process.

12. When the process is assembled as desired, click [OK] to commit the changes and close the Agent Procedure Editor window. This will return the user to the Administration — Agent Procedures screen. [NOTE: Any errors in entry will be displayed at the bottom of the entry screen. If there is an error, address the error message and repeat this step.]

13. [Optional] Repeat Steps #4 to Step #12 to add additional procedures. All additional procedures should have a unique Name.

14. Close the Administration — Agent Procedures screen by clicking the [x] in the upper right of the screen window. This will display the Administration screen again.



B. Define Unmanaged Processes

Unmanaged Processes allows the creation of vendors and processes where customized behaviors created in the Agent Procedure setup are assigned. These unmanaged processes must exist in the system or be created to configure them in section C. Configure Unmanaged Processes to Enable Custom Procedures. Please refer to the documentation dedicated to this setup for more information (Working with Unmanaged Licenses).





C. Configure Unmanaged Processes to Enable Custom Procedures

Managing created processes requires editing to establish desired runtime behaviors to control such things as frequency of behavioral checks, idle-time behaviors, and initiating or enabling the processes. [NOTE: The details here are specific to set-up of custom procedures. For example, this document assumes Vendors and Features have already been configured. For more information on adding Vendors and Features or additional configuration information, please read the dedicated documentation for Working with Unmanaged Licenses.]

1. Open the Administration — Unmanaged Processes screen ([Start] > [Administration] > [Unmanaged Processes]).

2. Click the Vendor name which includes the process to manage. This will display the available processes defined for the Vendor in the lower half of the screen.

3. Double-click the process to manage. This will open the Edit Process screen (see Figure 15).

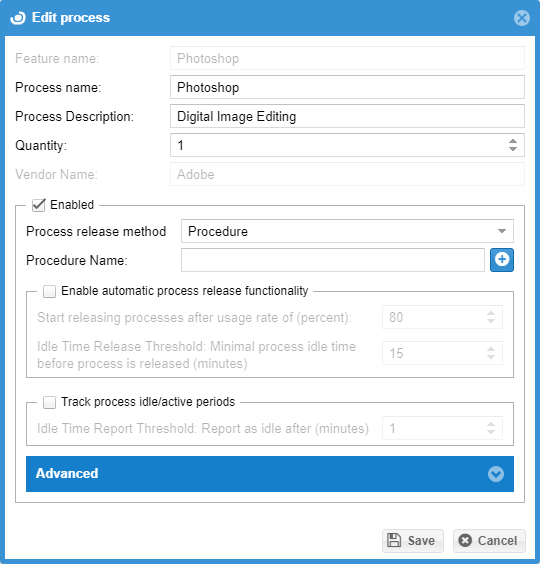

Figure 15: The Edit Process screen.

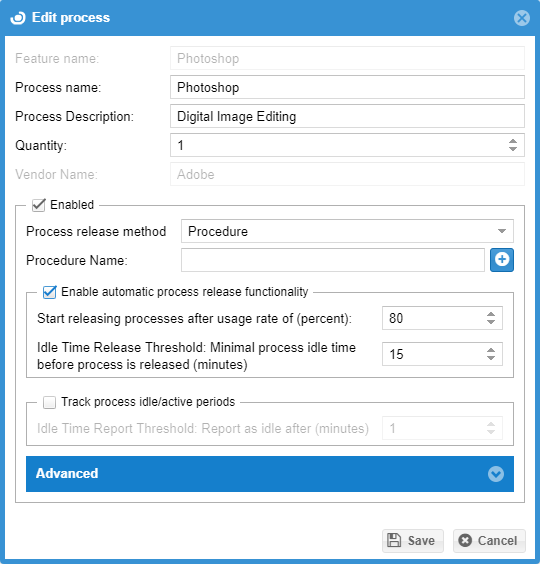

4. [Optional] Check the Enable Automatic Process Release Functionality box to activate the options in the panel (see Figure 16).


Figure 16: The Enable Automatic Process Release Functionality panel activated.

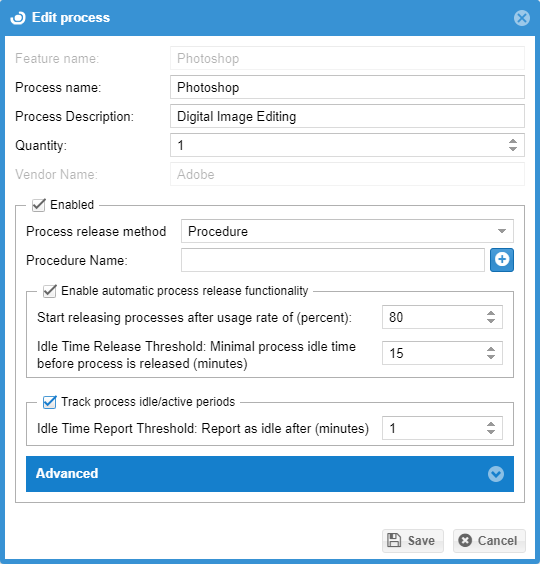

5. Check the Track Process Idle/Active Periods box (see Figure 17).


Figure 17: The Track Process Idle/Active Periods box checked.

6. Click the [+] button to the right of the Procedure Name field. This will open the Administration — Agent Procedures screen (see Figure 18). [NOTE: The procedures are those created in the Define Custom Agent Procedures section of this document.]

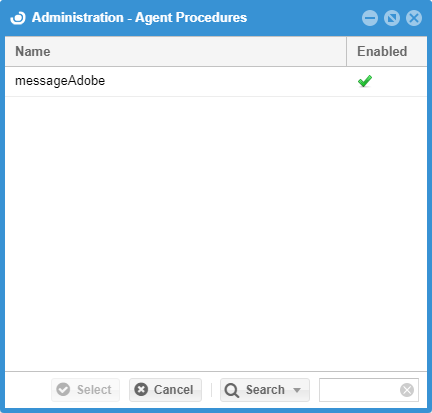

Figure 18: The Administration — Agent Procedures screen

7. Click on the desired procedure to highlight it.

8. Click the [Select] button. This will close the Agent Procedures screen and populate the Procedure Name field with the selected procedure (see Figure 19).

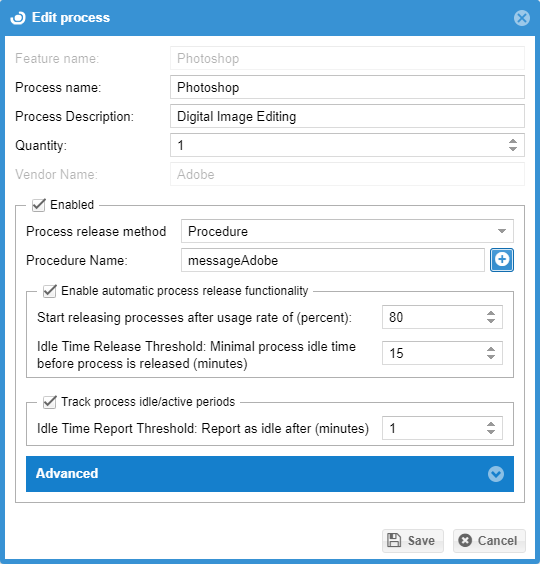

Figure 19: Edit Process screen with added procedure.

9. Click the [Save] button to commit the changes and exit the Edit Processes screen.

At this point setup is complete and the process will be enabled. It may be desirable to disable processes for a variety of reasons. The following steps allow users to temporarily disable the process.

To Disable a Procedure

1. Open the Unmanaged Processes screen ([Start] > [Administration] > [Unmanaged Processes]).

2. Click the Vendor name where the process resides. This opens the Edit Process screen.

3. Double click the process which contains the procedure to suspend.

4. Uncheck the Enable Process Release Functionality box by clicking it. The panel will gray out and be disabled. All the settings will be retained.

5. Click [Save] to commit the changes.

The process will be disabled and can be reinstated by checking the Enable Process Release Functionality box again.



Creating Custom Commands with Alert Management #

System managers can define alert conditions which trigger behaviors that present alert messages or run custom scripts. When Custom Commands are enabled several features are added to Alert Management functionality:

  1. Run a Program on OpenLM Server
  2. Run a Broker Command on a License Manager Server

Both commands are managed from the Alert Management module in OpenLM EasyAdmin. Additional information about the specifics of Alert Management configuration can be found in the dedicated OpenLM Alerts Configuration document.



A. Run a Program on OpenLM Server

1. Open the Administration screen in OpenLM EasyAdmin ([Start] > [Administration]).

2. Click on the Alerts Management icon (see Figure 20). This will open the Alert Rules screen (see Figure 21).

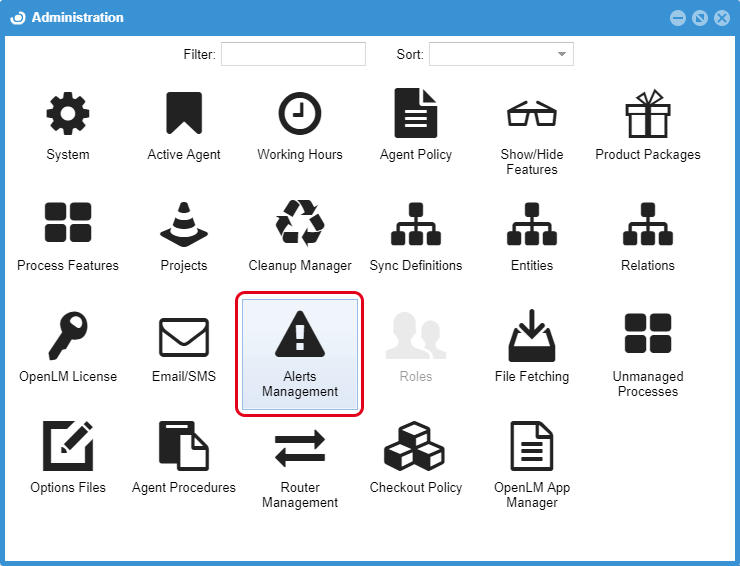

Figure 20: Choose Alerts Management from the Administration screen.

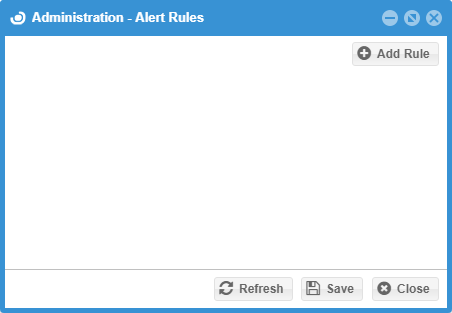

Figure 21: The Alert Rules screen.

3. Click [+ Add Rule]. This opens the Add Alert Rule screen (see Figure 22). Required fields will be highlighted with an exclamation point ( ).

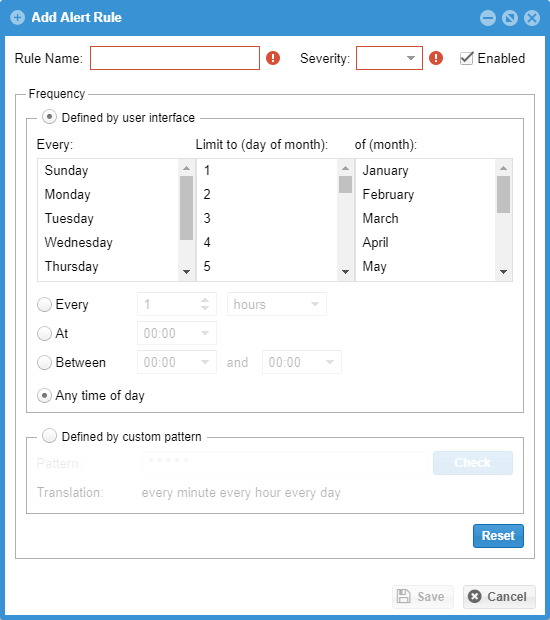

Figure 22: The Add Alert Rule screen.

4. Enter a name for the rule in the Rule Name field.

5. Click the down arrow on the Severity drop list and choose a level of severity from the list of choices (Alert, Warning or Notice).

6. Configure the Frequency. [NOTE: Consult the Alert Management documentation for details on configuring Frequency.]

7. Click the [Save] button. The rule will be stored and the Add Alert Rule screen will close. The Alert Rules screen will populate with the new rule and additional fields for configuration will become available (see Figure 23).


Figure 23: The Alert Rules screen populated with the added rule.

8. Set a Condition. To do this follow Step #8.a to Step#8.e.

a. Choose a Type from the Type drop list on the Conditions panel.

b. Click the [+Add] button to the right of the selected Type to open the Add Condition screen (See Figure 24).

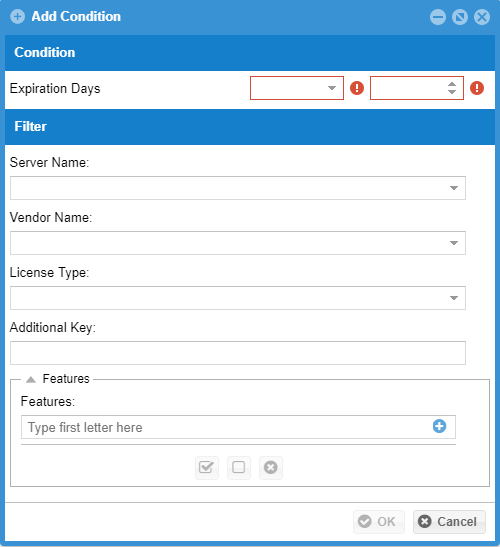

Figure 24: The Add Condition screen for Feature Expiration Date.

[NOTE: The Condition panel on the Add Condition screen is context sensitive to the selection made for Type.]

c. Enter the required Condition parameters.

d. Enter the required Filter parameters. When all the required parameters are entered, the [OK] button will become available.

e. Click [OK] to save the condition and close the screen. A row will be added to the Conditions panel on the Alert Rules screen (see Figure 25).

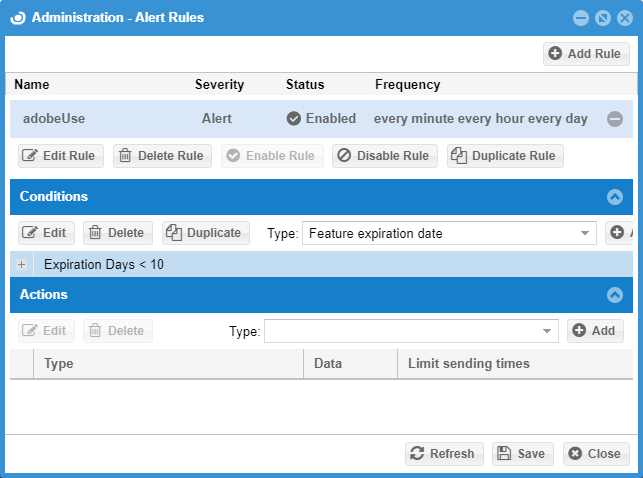

Figure 25: A condition added to the Alert Rules screen.

9. Set an Action. To do this follow Step #9.a to Step#9.f.

a. Choose Run a Program on OpenLM Server from the Type drop list on the Actions panel.

b. Click the [+Add] button to the right of the Type field to open the Add Action screen (See Figure 26).

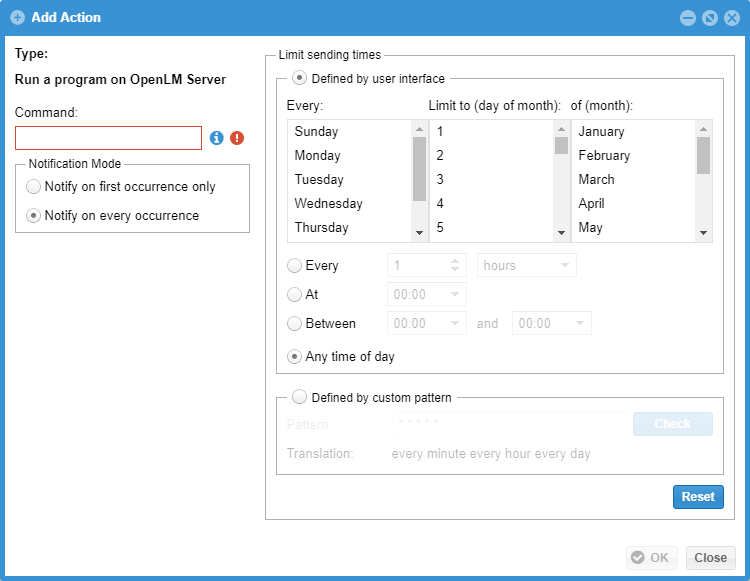

Figure 26: The Add Action screen.

c. Enter a Command to run on the server.

d. [Optional] Configure the Notification Mode by choosing from the available options. The default is “Notify on Every Occurance.”

e. [Optional] Configure the Limit Sending Times. The default will be any time of day.

f. Click [OK] to commit the changes and close the Add Actions screen. The Alert Rules screen will populate with the action (see Figure 27).

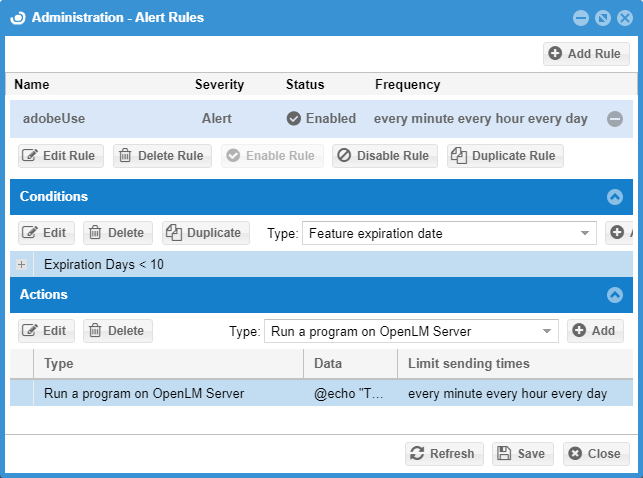

Figure 27: The Alert Rules screen populated with the newly added Action.

10. Click [Save] to commit the changes.



B. Run a Broker Command on a License Manager Server

1. Open the Administration screen in OpenLM EasyAdmin ([Start] > [Administration]).

2. Click on the Alerts Management icon (see Figure 28). This will open the Alert Rules screen (see Figure 29).


Figure 28: Choose Alerts Management from the Administration screen.

Figure 29: The Alert Rules screen.

3. Click [+ Add Rule]. This opens the Add Alert Rule screen (see Figure 30).


Figure 30: The Add Alert Rule screen.

4. Enter a name for the rule in the Rule Name field.

5. Click the down arrow on the Severity drop list and choose a level of severity from the list of choices (Alert, Warning or Notice). When the required fields are populated, the [Save] button will become available.

6. [Optional] Configure the Frequency. The Default will be “Any time of day.” [NOTE: Consult the Alert Management documentation for details on configuring Frequency.]

7. Click the [Save] button. The rule will be stored and the Add Alert Rule screen will close. The Alert Rules screen will populate with the new rule and additional fields for configuration will become available (see Figure 31).


Figure 31: The Alert Rules screen populated with the added rule.

8. Set a Condition. To do this follow Step #8.a to Step#8.e.

a. Choose a Type from the Type drop list on the Conditions panel.

b. Click the [+Add] button to the right of the selected Type to open the Add Condition screen (See Figure 32).


Figure 32: The Add Condition screen for Feature Expiration Date.

[NOTE: The Condition panel on the Add Condition screen is context sensitive to the selection made for Type.]

c. Enter the required Condition parameters.

d. Enter the required Filter parameters. When all the required parameters are entered, the [OK] button will become available.

e. Click [OK] to save the condition and close the screen. A row will be added to the Conditions panel on the Alert Rules screen (see Figure 33).


Figure 33: A condition added to the Alert Rules screen.

9. Choose Run a Broker Command on LM Server from the Type drop list in the Actions panel. This will open the Add Action screen (see Figure 34).

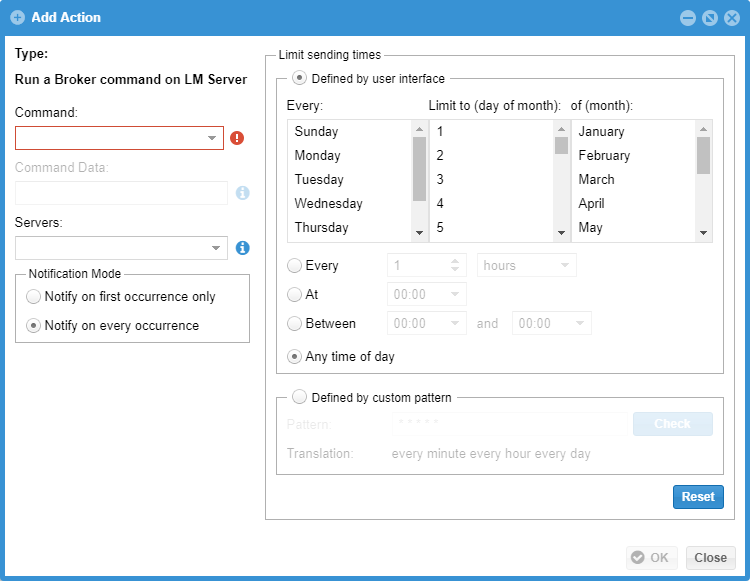

Figure 34: The Add Action screen.

10. Click the down arrow on the Command drop list and choose Custom. When custom is selected Command Data and Servers fields become available (see Figure 35).

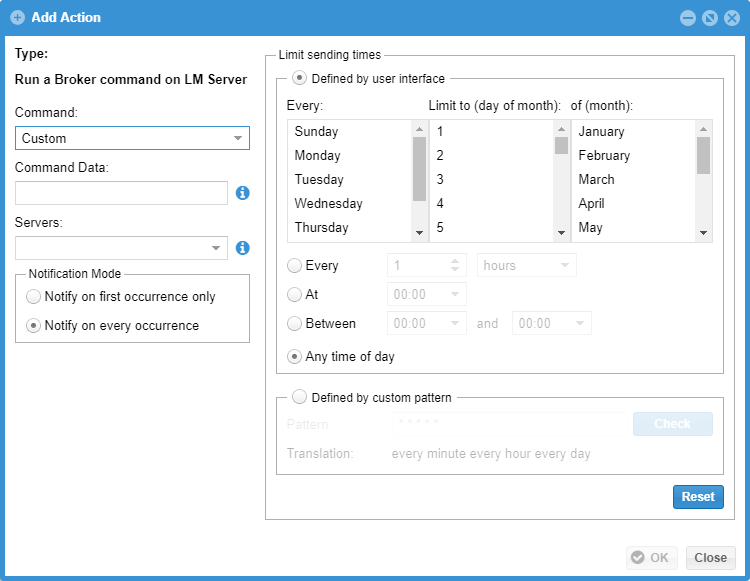

Figure 35: Add Actions with Command Data and Servers fields revealed.

11. Enter the command to be executed in the Command Data field.

12. Click the down arrow on the Servers drop list to reveal the configured servers.

13. Choose the server(s) from the drop list by clicking on a selection.

14. [Optional] Configure the Notification Mode by choosing from the available options.

15. [Optional] Configure the Limit Sending Times. The default will be any time of day.

16. Click [OK] to commit the changes and close the Add Actions screen. The Alert Rules screen will populate with the action (see Figure 36).

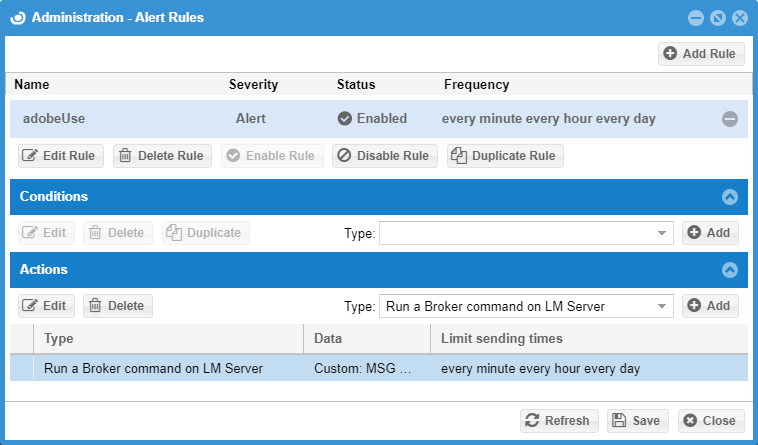

Figure 36: The Alert Rules screen populated with the newly added Action.

17. Click [Save] to commit the changes.



Creating Custom Commands with App Manager #

Custom Commands provide customized scripting functionality for rules created in the App Manager module. Rules that allow or deny license consumption can trigger scripts that run as an application or as a service on the end user’s workstation.

Commands are managed from the App Manager module in OpenLM EasyAdmin. The commands are configured in the Action Editor while adding rules to the License Consumption Rules Table. This section of the documentation deals specifically with how rules are implemented as part of Custom Commands. Additional information about the specifics of App Manager configuration can be found in the dedicated OpenLM App Manager Configuration documentation.

1. Open the Administration screen in OpenLM EasyAdmin ([Start] > [Administration]).

2. Click on the App Manager icon in the Administration screen (see Figure 37). This will open the OpenLM App Manager administration screen (see Figure 38). The screen will display products configured in OpenLM Agent Configuration screen under the OpenLM App Manager tab (accessed via the [Configure] button).


Figure 37: The OpenLM App Manager icon, highlighted.

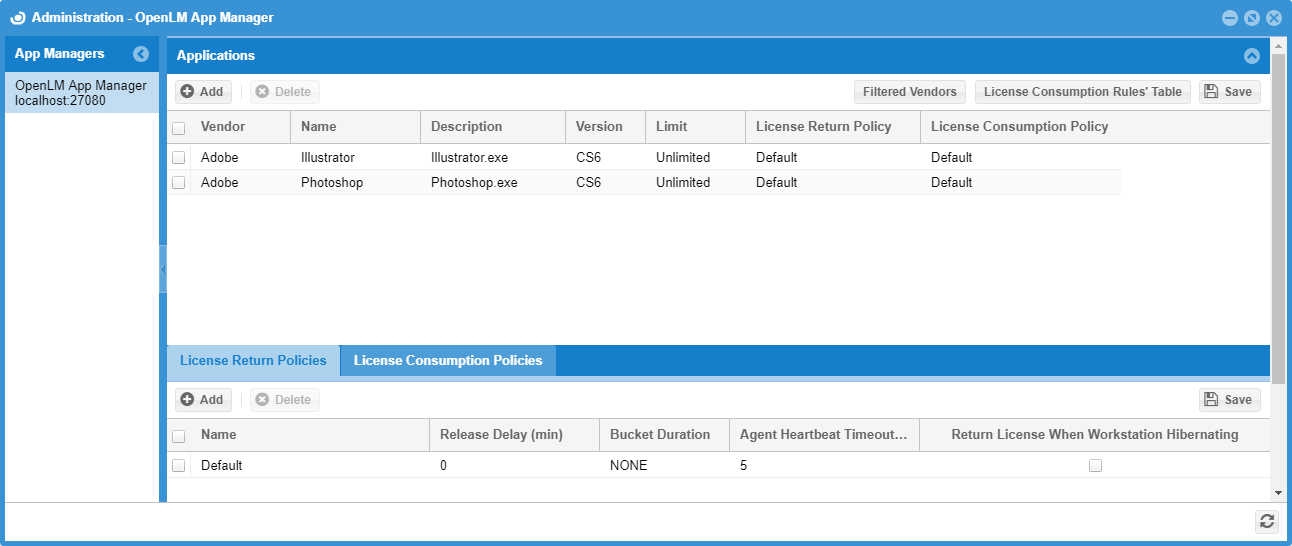

Figure 38: The OpenLM App Manager administration screen.

3. Click the [License Consumption Rules Table] button to show the existing rules in the License Consumption Rules Table screen (see Figure 39). The default rule are:

Rule Name = Everyone

Action = Deny

[NOTE: This configuration means that no one can run a process managed by App Manager as configured in the OpenLM App Manager tab on the OpenLM Agent configuration screen. Additional configuration is required to allow users to initiate actions.]

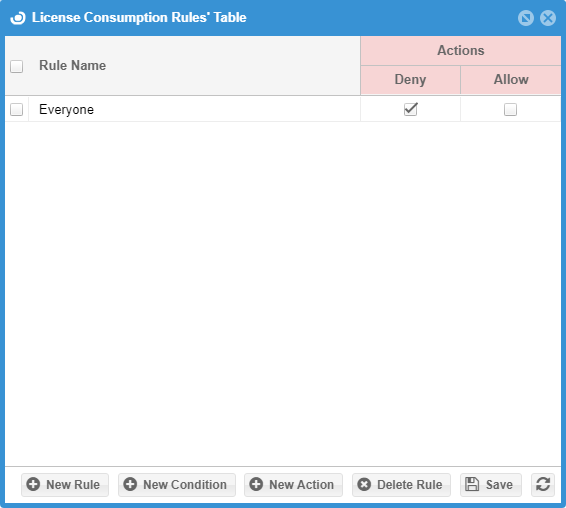

Figure 39: The License Consumption Rules Table screen.

4. Assign a Custom Command behavior. Adjusting control of behaviors. A few examples covered in Step #4.a to Step #4.c include editing an existing action, adding an action, and defining a condition.

a. Edit the behavior of an existing action.

i. Double-click directly on the Deny label. This will open the action in the Action Editor screen with the current parameters for the Deny rule (see Figure 40).

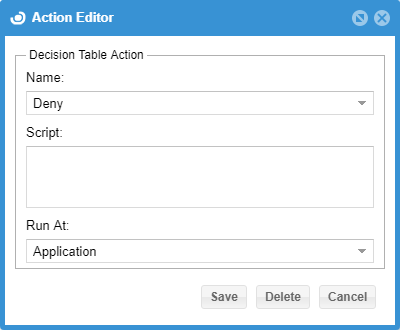

Figure 40: The Action Editor screen populated with parameters for Deny.

ii. Enter a valid script into the Script field.

iii. Click [Save]. The script will now apply to all denied licenses configured in the App Manager.

b. Add a new action.

i. Click [+New Action] to open the Action Editor screen (see Figure 41).

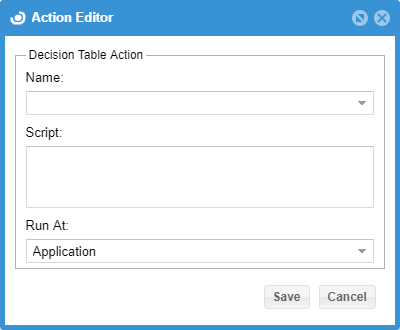

Figure 41: The Action Editor screen.

ii. Click the arrow at the right of the Name field to reveal the drop list of choices for the action name.

iii. Select one of the choices from the drop list (Allow, Deny) by clicking on it in the menu. See descriptions for the options in Table 4.

Name Action
Allow The Action will be associated with successful grant of a license.
Deny The Action will be associated with a license denial.

Table 4: Action name choices.

iv. Click the arrow at the right of the Run At to reveal the drop list of choices for run at options.

v. Select one of the choices from the drop list (Application, Service) by clicking on it in the menu. See descriptions for the options in Table 5.

Option Description
Application
  • The script runs in the Agent Application domain, which is intended for on-screen viewing and user interaction (e.g., show messages or display applications).
  • The script runs as the current user’s UserName.
  • These scripts cannot influence System-owned tasks.
Service
  • The script run in the Agent Service domain, which is intended for silent procedures (e.g., manage the registry or configure security).
  • The script runs as the System user.
  • These scripts cannot influence UserName-owned tasks

Table 5: Run At choices.

vi. Enter a valid script in the Script field.

vii. Click [Save]. A new Deny column will appear on the right License Consumption Rules Table screen.

[NOTE: It is possible to have multiple actions for a rule name as in cases where it is desirable to run both an application and a service. To delete undesired columns, double-click the label (e.g., Allow or Deny) and click the [Delete] button on the Edit Action screen.]

.

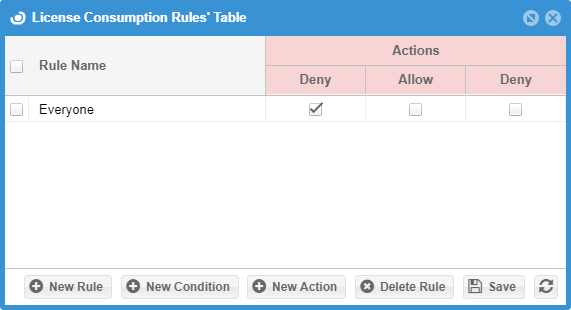

Figure 42: New Deny column in the License Consumption Rules Table.

viii. Click the checkbox under Deny in the added column. The script will now apply to all denied licenses configured in the App Manager.

c. Add a condition for the rule.

i. Click on the [+Add Condition] button. This will open the Condition Editor screen.

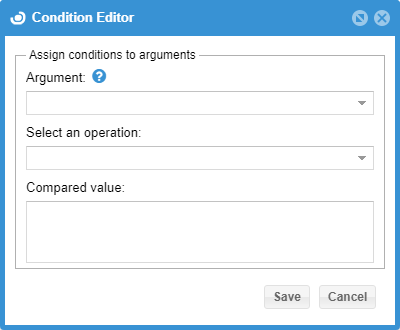

Figure 43: The Condition Editor screen.

ii. Click the down arrow to the right of the Argument field. This will reveal a list of argument options (see Figure 44).

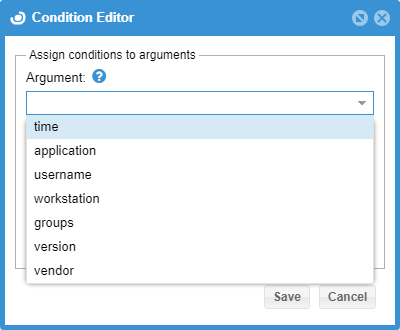

Figure 44: The choices in the Argument drop list.

iii. Click on an argument from the Argument drop list to populate the field. [Note: Vendor was selected in this example.]

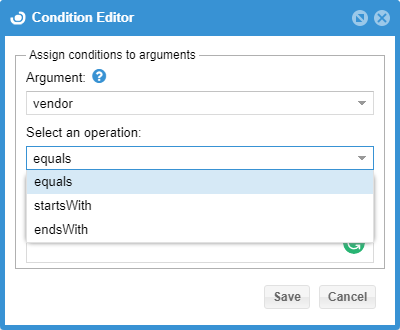

iv. Click the down arrow to the right of the Select an Operation field. This will reveal a list of argument options (see Figure 44). The options are context sensitive to the selection made in the Argument field.


Figure 44: The choices in the Argument drop list.

v. Click on an option from the Select an Operation drop list to populate the field. [Note: Equals was selected in this example.]

vi. Enter a parameter in the Compared Value field. This should logically complete the condition. [Note: Adobe was selected in this example.]

vii. Click [Save]. A new Conditions column will appear on the License Consumption Rules Table screen.

Figure 45: New Deny column in the License Consumption Rules Table.

viii. Click the checkbox under Conditions in the added column (see Figure 46). The condition will now apply to all licenses configured in the App Manager which use Adobe as the vendor and will work in tandem with the active Allow actions as defined. If the condition is met, the action will execute (an allowed license will trigger the script). Messages will appear for success or failure results (see Figure 47 and Figure 48).

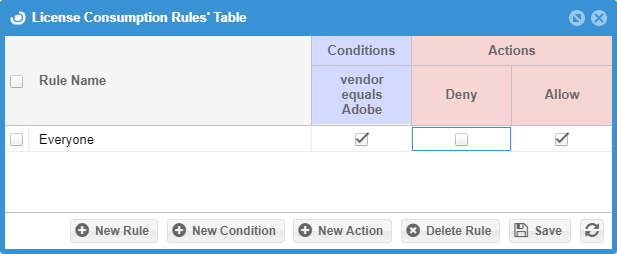

Figure 46: A license consumption rule with multiple functions.

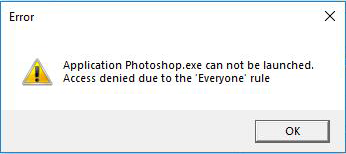

Figure 47: License denial Error screen.


Figure 48: The message returned by the Allow script.

By building consumption rules it is possible to handle complex licensing situations that enable creative solutions to help end users and customize license handling.

What are your feelings
