Actual Application Usage – KB3002

You are here:
< All Topics

OpenLM Actual Usage

A significant challenge when monitoring the utilization of network licenses is to find out whether and how the specific software is actually being used, and for which license is being utilized. OpenLM delivers two figures to be able to measure this factor:

  • Duration of time a license is consumed by a specific user a session

  • Duration of time a shared license application was actually in use and for how long a period of time.

Prior to viewing, there are a number of steps needed to follow that will make it possible to assess Actual Usage:

1. Make sure the OpenLM Agent is installed on the end user’s workstation.

2. Open the EasyAdmin web application

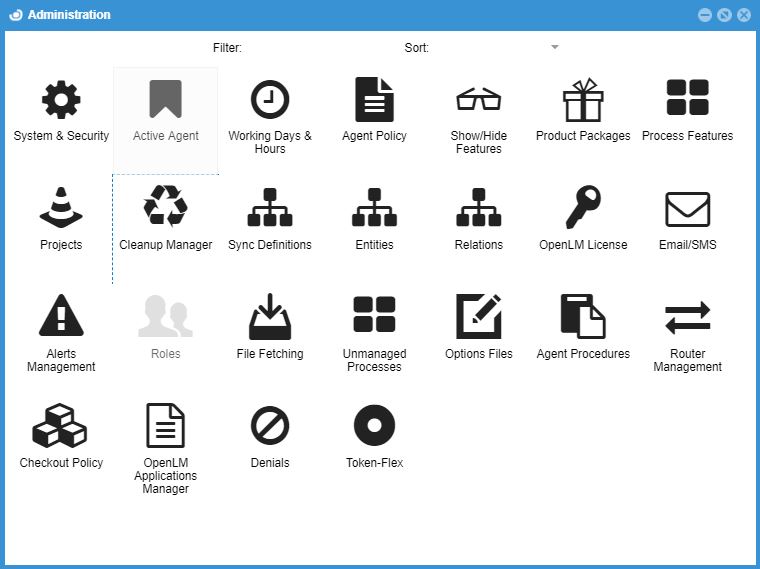

3. Click Start → Administration→ Process Features

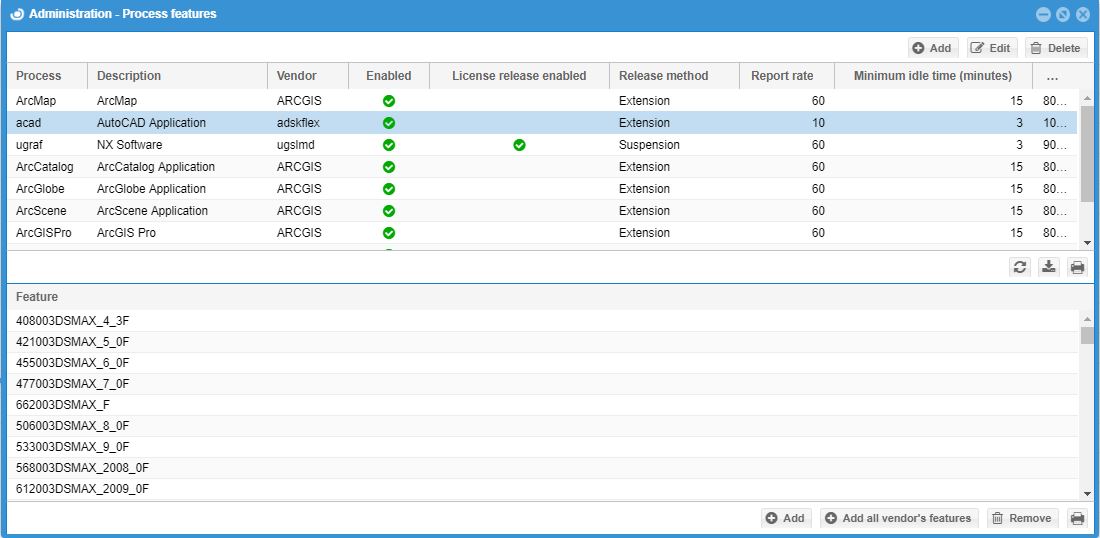

4. The Process features window will open:

5. If the process that needs monitoring is not already in the list of processes, it needs to be added manually:

a. Click the Windows Start button.

b. Go to OpenLM → Processes. The Processes list will open:

c. Select the desired process(es) and minimize the window. This information will be needed in Step 6.

d. In order to add new process(es) to the currently managed process list, re-open the Process features window and click the Add icon, (located on the top right – hand side). The Add process window will then open.

e. For processes that already exist in the process list, select them and click the Edit icon. An identical Edit process window will appear (see below).

f. Add features to the selected application. This is done one feature at a time by clicking the Add icon on the lower-right corner of the Process features pane, or by adding ALL features automatically by clicking Add all Vendor’s features.

6. Configure the process window to monitor idle licenses:

  • Provide a Process name as obtained in Step 5- Item c (listed above), e.g: ArcMap.

  • Provide a  Description of the managed process, and

  • Provide the application’s Vendor name exactly as appears in the license file.

  • Very important that the Enabled, Save process activity and System resource threshold used boxes are marked.

  • Set the Idle Time Report Threshold. This is the minimal period of time before an inactive session is reported as idle.

  • Set the software resource thresholds. These numbers indicate the thresholds under which a process is considered idle.

After completing the process described above in paragraphs 1 through 6, the Active Agent is set to monitor the managed process.

Tracking Actual Usage

1. Open the OpenLM EasyAdmin web application.

2. Click Start → Operational → Currently Consumed Licenses. The Currently Consumed Licenses page is open.

3.  Click the Crescent moon icon ( q7 ) for a particular row to view the Actual usage of a particular vendor.

This window lists all currently active sessions. Using this window, administrators can monitor individual workstations that run licensed applications.

4.  The peaks in the the chart represent Active Usage which is represents the Actual Usage. The low flat line represents the Idle time.

It is also able to differentiate the exact Actual Usage from the Idle time.
