OpenLM usability report files

2 views 0

Written by Rabijit Khuntia
February 14, 2017

General

OpenLM deals with pieces of license usage information that originate from multiple sources, and may prove contradictory to each other. We apply our hard-earned experience to reconcile such contradictions, and to present valid license usage reports.



Usability reports

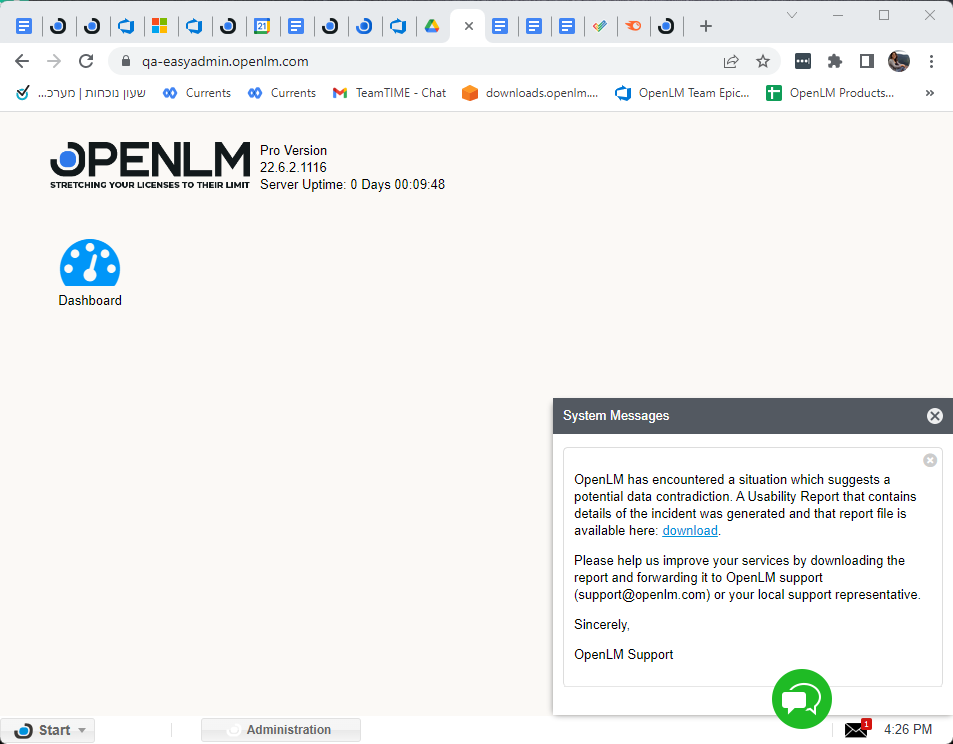

In the event that such a contradiction is encountered, a usability report file will be created, and the EasyAdmin User Interface web application will present it as a system message (envelope icon), as shown below.

The user will be prompted to download the report and send it by mail to the OpenLM support team, at support@openlm.com

Usability report files will be saved in the download folder as zip files, and their name will contain the day of week; e.g.: usability_report_sunday.zip.

The system notification (envelope icon) indication will persist as long as zipped usability report files exist in the download folder.



Files policies

The OpenLM Server implements the following policy on the downloaded usability report files:

  1. Usability report files will be kept in the folder for 3 days.
  2. There will be no more than 2 reports downloaded per day.
  3. The size of zipped files are not expected to exceed a few Megabytes.

In case the EasyAdmin user chooses to designate a folder other than the default for downloading usability report files, they would need to ensure the OpenLM Server service possesses the appropriate access permissions to the said folder.



Email notification

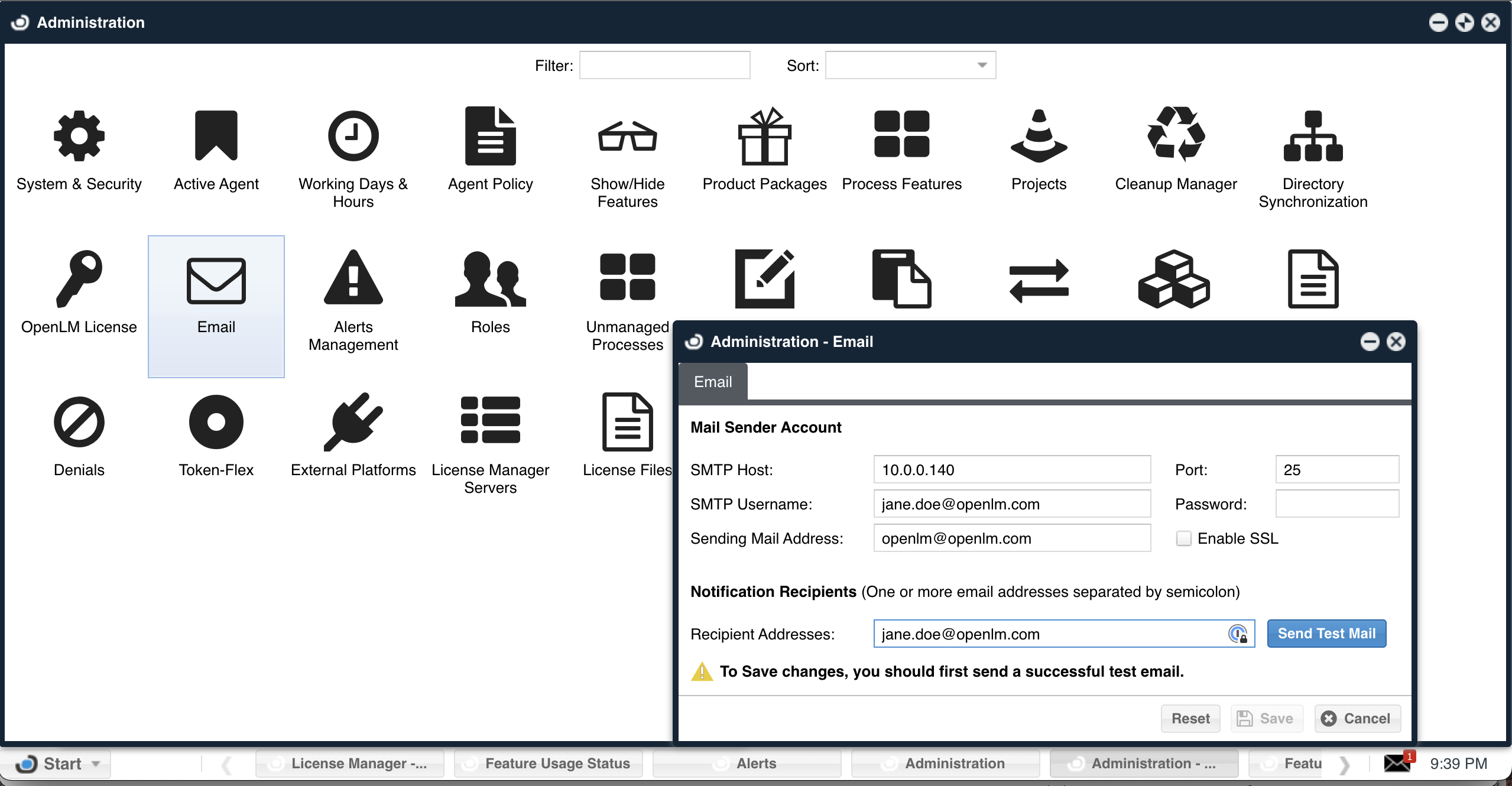

Administrators may be notified regarding the existence of report files to be downloaded through email. The email account for such notifications is set up through EasyAdminUser Interface via Start → Administration → Email window, as depicted below.
