Supporting Network Named User Licenses. Case study: MATLAB. KB

FlexNet Network Named Licenses

โ€œNetwork Named Licensingโ€ is a licensing method that allocates a certain number of licenses to predefined users or machines in the organization. In software systems licensed by FlexNet publisher, this is usually implemented using Options file; Licenses are dedicated to specific users or machines by specifying usernames and hostnames on these Options files, dictating usage restrictions and permissions on the license server



The problem

Organizations normally acquire software licenses in pools and may have specific licenses present in multiple pools. Such is the case when the organizationโ€™s software assets are a hybrid of Node-locked, Named, and Floating licenses. In such cases, the association of a checked-out license to a specific license pool becomes unclear. This obscurity is particularly disturbing given the fact that Floating licenses are normally more expensive than Named licenses, and so keeping track of license consumption and billing is compromised.



Solution in OpenLM

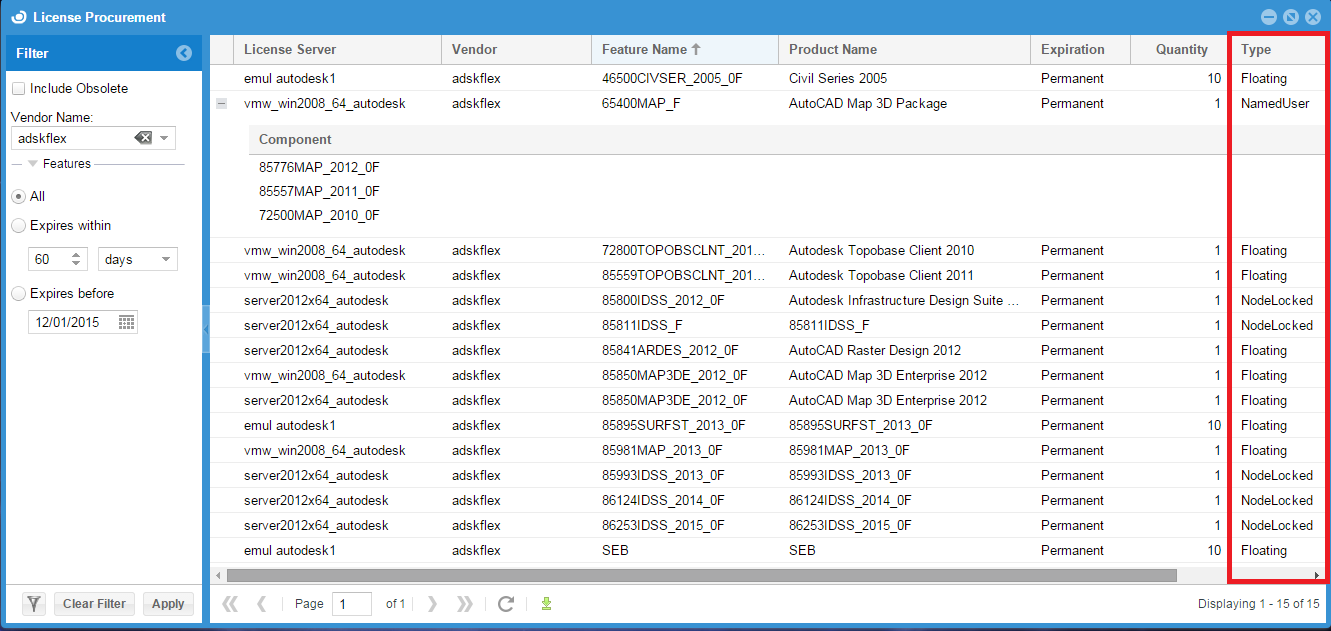

Beginning with OpenLM provides a solution to this problem, enabling detailed usage reporting in a hybrid license-type environment. See the image below for reference.



Maintaining the Options File

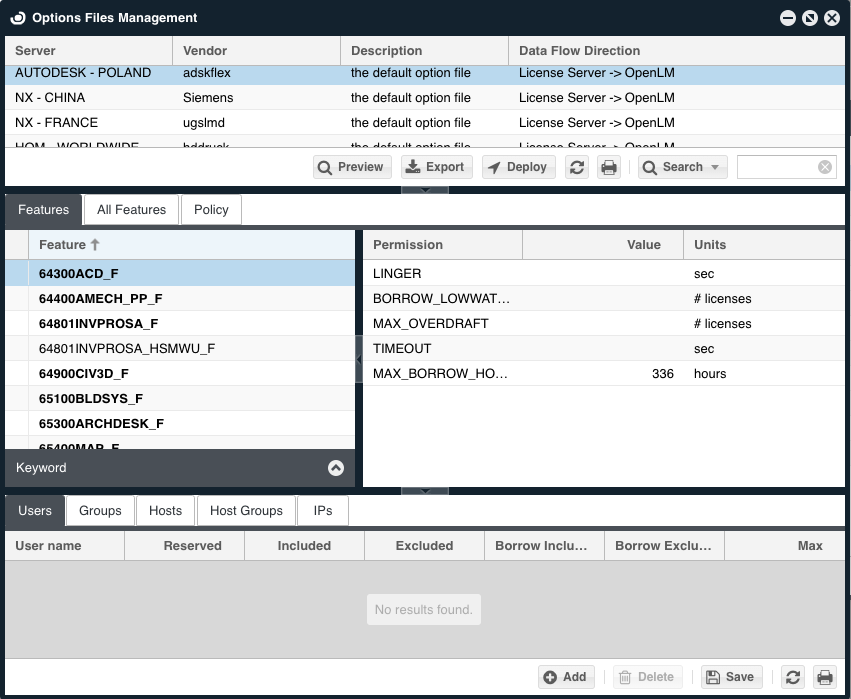

OpenLM provides a method for automatically maintaining the FlexLM Options file through a dedicated menu-driven extension. Options files are kept in sync with the organizational units and groups as they are defined in the organizationโ€™s LDAP (Active Directory). The OpenLM Options file menu is presented below:

The complete list of FlexLM Optionsโ€™ files keywords and parameters has been integrated in the OpenLM Options file extension (e.g.: asset_info, VERSION, HOSTID, EXPDATE, KEY, SIGN, ISSUER, NOTICE, ย VENDOR_STRING, dist_info, ย and user_info). OpenLM can enforce license usage according to predefined license pools, by means of the asset_info parameter.



Example

OpenLM facilitates Matlab license usage reporting. This example demonstrates the configuration required for enforcing Network Named licensing for MATLAB on the FLEXnet publisher



FLEXlm MATLAB License File:

The number of named licenses reserved for specific users is specified in the license fileโ€™s INCREMENT or FEATURE line as โ€œUSER_BASED=5โ€. These assets are marked by the ASSET_INFO parameter

 โ€œASSET_INFO=123456โ€

INCREMENT MATLAB MLM 31 01-jan-0000 101234 XXXXXXXXXX

VENDOR_STRING=vi=0:at=276:ae=1:lu=300:lo=NNU:ei=XXXXXX:lr=1:

HOSTID=ID=123 USER_BASED=5 DUP_GROUP=UH sort=90 asset_info=123456

ISSUED=XXXX BORROW=720 NOTICE=product=MATLAB SN=123

SIGN=โ€XXXX XXXX โ€ฆ XXXXโ€



FLEXlm MATLAB Options file:

In the Options file, a group containing exactly 5 users is defined as follows:

GROUP NNU_MATLAB_USERS User1 User2 User3 User4 User5

Further down the Options file, an INCLUDE line is added, to reserve the licenses for users User1,โ€ฆ,User5:

INCLUDE MATLAB:asset_info=123456 GROUP NNU_MATLAB_USERS



Conclusion

OpenLM provides a comprehensive solution for keeping track of changes made on the Organizational Active Directory, Applying these changes to FlexLM Options files, and reporting historical and concurrent license usage according to license types:โ€ Named Licensesโ€, โ€œNode Locked Licensesโ€ and โ€œFloating Licensesโ€.
